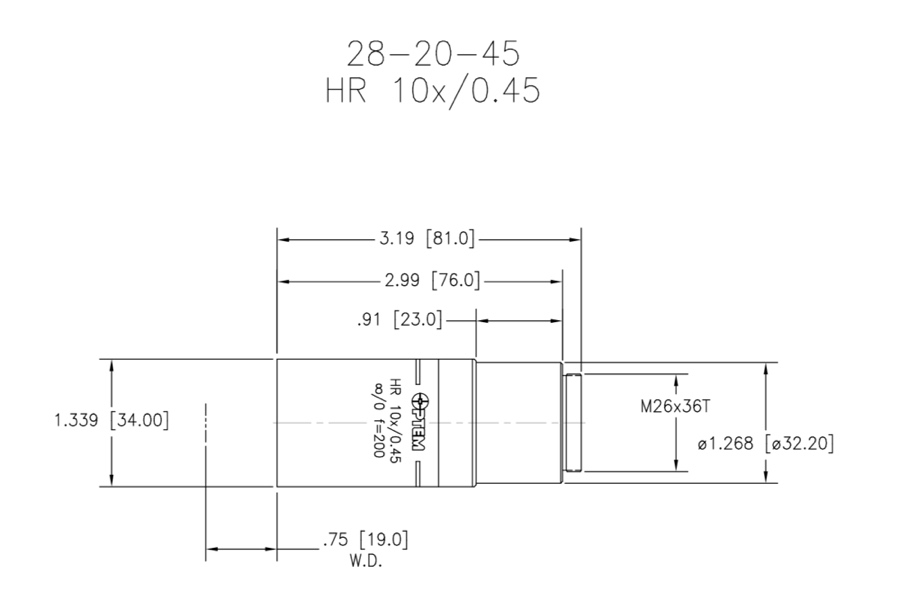

10x Hi-Res
- Sufficient working distance from 13 to 41 mm
- Infinity corrected
- Consistent 95 mm shoulder to object distance
- NA from 0.055 to 0.6 Standard thread adapter required for mounting
| Parameter | Value |
|---|---|
| Numerical Aperture | 0.45 |
| Working Distance (mm) | 19 |
| Effective Focal length (mm) | 20 |
| Resolution (um) | 0.74 |
| Depth of Field (um) | 2.7 |
| Mass (g) | 190 |
