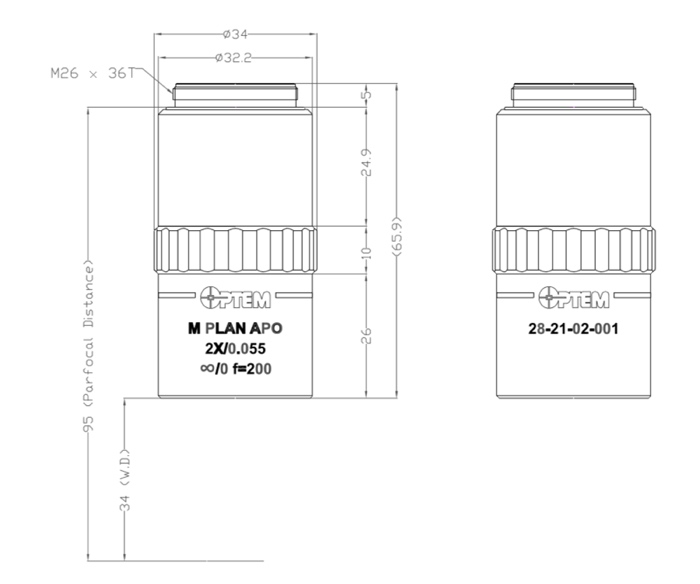

2x M Plan Apo
- Sufficient working distance from 13 to 41 mm
- Infinity corrected
- Consistent 95 mm shoulder to object distance
- NA from 0.055 to 0.6 Standard thread adapter required for mounting
| Parameter | Value |
|---|---|
| Numerical Aperture | 0.055 |
| Working Distance (mm) | 34 |
| Focal length (mm) | 100 |
| Resolution (Full Cycle) -λ = 0.55um (um/lp) | 6.1 |
| Depth of Field (mm) | 0.18 |
| Field of View - Ø24 eyepiece (mm) | 12 |
| Mass (g) | 223 |
