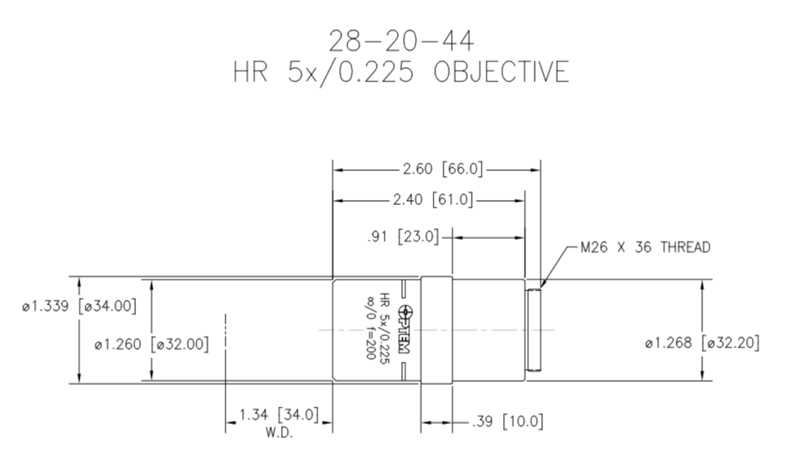

5x Hi-Res
- Sufficient working distance from 13 to 41 mm
- Infinity corrected
- Consistent 95 mm shoulder to object distance
- NA from 0.055 to 0.6 Standard thread adapter required for mounting
| Parameter | Value |
|---|---|
| Numerical Aperture | 0.225 |
| Working Distance (mm) | 34 |
| Effective Focal length (mm) | 40 |
| Resolution (um) | 1.5 |
| Depth of Field (um) | 10.09 |
| Mass (g) | 299 |
