Baumer VCXG-50MP
The VCXG.MP polarization cameras offer an easy way to inspect demanding surfaces and materials with image processing. The cameras use the polarization characteristics of the light, simultaneously capturing the angle of polarization (AOP), the degree of polarization (DOLP), or a combination of both (ADOLP). They utilize Sony Polarsens CMOS sensors that feature an additional polarization level consisting of four polarization filters (0°, 45°, 90°, and 135°) on the pixel level. As a result, invisible material characteristics such as residual stress in glass or plastic, defects in carbon fiber reinforced plastic (CFRP), and barely visible quality differences of highly reflected surfaces become visible and can be evaluated. This way, instead of a complex testing system with various polarizing filters or a multi-camera system, all that is required is an industrial camera and a single image – significantly reducing the complexity and the system costs and offering a simple, cost-effective inline solution.
Highlight Features
- Running faster with no compromise in image quality
- Able to withstand high temperature with no compromise in compact design
- Powerful features , with no compromise in value.
-
Model VCXG-50MP Sensor Sony IMX250MZR Type 2/3′′ CMOS Resolution 2448 × 2048 px Exposure Time 0,001 ... 60000 ms Pixel Size 3.45 × 3.45 μm Image formats Full Frame, 2448 × 2048 px, max. 24 fps Binning 2×2, 1224 × 1024 px, max. 35 fps Binning 2×1, 1224 × 2048 px, max. 35 fps Binning 1×2, 2448 × 1024 px, max. 35 fps
image formats, aquisition frame rate max. (Burst Mode) Full Frame, 2448 × 2048 px, max. 35 fps Pixel formats Mono8
Mono10 Mono12 Mono12 PackedAnalog control Gain (0 ... 48 dB)
Offset (0 ... 255 LSB 12 Bit)Color models Mono Polarized Data interface Gigabit Ethernet, Transfer rate 1000 Mbits/ sec, Fast Ethernet, Transfer Rate 100 Mbits/ sec, Connector: 8P8C Modular Jack (RJ45), screwable type

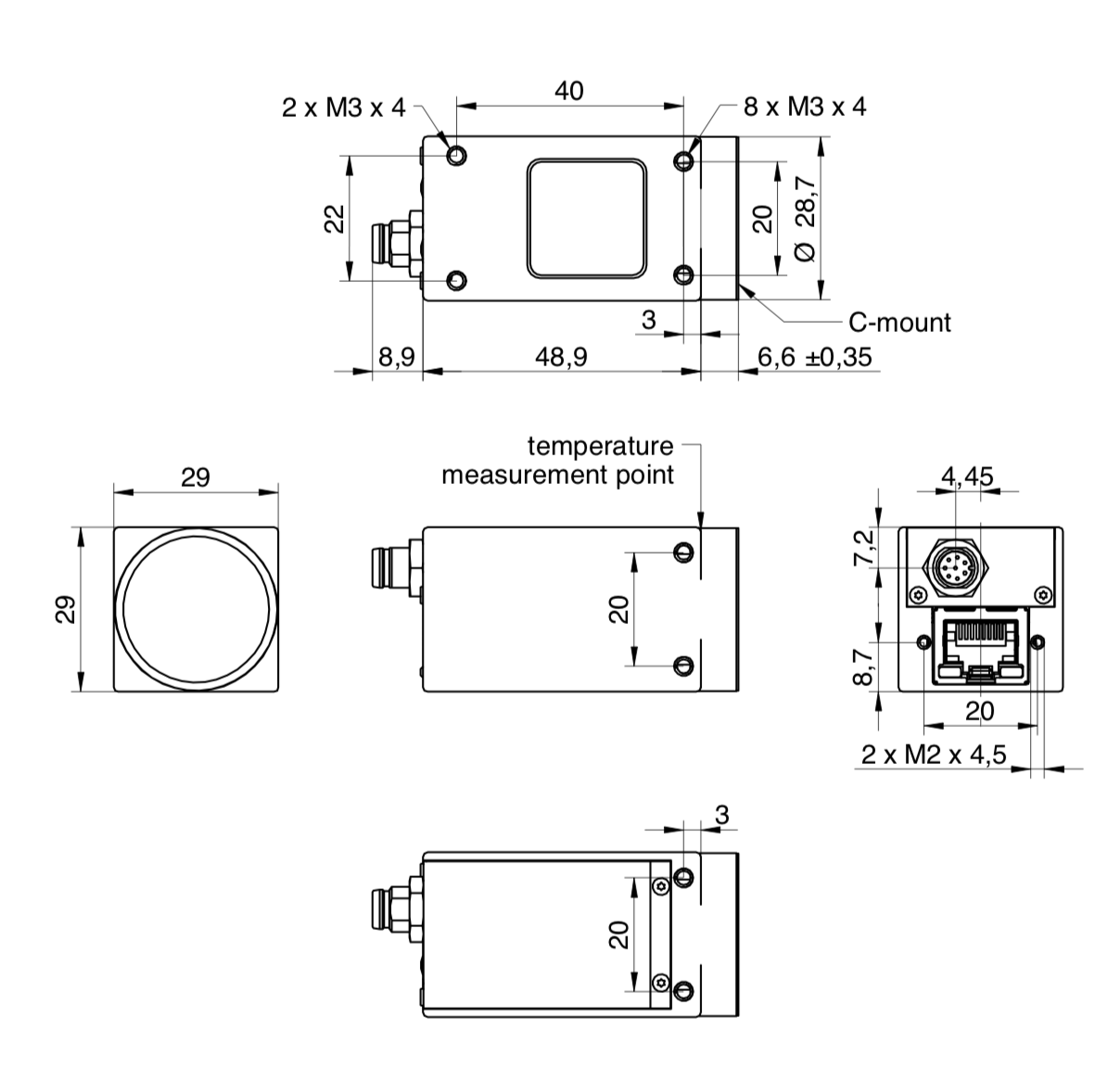

Process interface M8 / 8 pins (SACC-DSI-M8MS-8CON-M8-L180) Power supply M8 / 8 pins or PoE Material zinc die casting, nickel-plated, IP 40 Lens mount C-mount Width x Height x Depth (mm) 29 x 29 x 49 Weight approx. 120g Voltage supply range 12 … 24 V DC (external power supply)
36 … 57 V DC (Power over Ethernet)Power consumption approx. 2,6 W @ 12 VDC and 24 fps approx. 3,1 W @ 48 VDC (PoE) and 24 fps Flash memory size 128 kB Operating temperature +5 ... +65 °C @ T = measurement point Humidity 10 … 90 % (non-condensing) Protection class IP 40 Lines 1 input line
1 output line
2 general purpose linesConformity CE
RoHS
