Baumer VLXT-90M.I
The LXT cameras feature 10 GigE interface for fast image transmission and reduced processing time. As a result, they are 10 times faster than GigE and 35 percent faster than Camera Link Full. In doing so, they ensure consistent data transmission at high bandwidth of 1.1 GB/s. In parallel, you are offered all benefits of the GigE Vision standard: widespread industrial availability, cable lengths up to 100 meters and easy cost-effective integration without the need for special frame grabbers and cables.
- 4096 × 2160 px
- Sony IMX255
- 1″ CMOS
- 95 fps
- 10 GigE
| Model | VLXT-90M.I |
|---|---|
| Sensor | Sony IMX255 |
| Type | 1″ CMOS |
| Resolution | 4096 × 2160 px |
| Exposure Time | 0,001 … 60000 ms |
| Pixel Size | 3.45 × 3.45 µm |
| Image formats | Full Frame, 4096 × 2160 px, max. 95 fps Binning 2×2, 2048 × 1080 px, max. 95 fps Binning 2×1, 2048 × 2160 px, max. 95 fps Binning 1×2, 4096 × 1080 px, max. 95 fps |
| Pixel formats | Mono 8/10/12/12packed |
| Color models | Mono |
| Internal buffer | 1024 MB |
| Synchronization | Free running, trigger |
| Trigger sources | Hardware, Software, Action Command |
| Data interface | 10 Gigabit Ethernet, Transfer rate 10000 Mbits/sec, Gigabit Ethernet, Transfer rate 1000 Mbits/sec, Fast Ethernet, Transfer rate 100 Mbits/sec, Connector: M12 / 8-pol x-coded (SACC-CI-M12FS-8CON-L180-10G) |
| Process interface | M12 / 12 pins a-coded (SACC-CI-M12MS-12CON-L180) |
| Power supply | via M12/12 pins a-coded |
| Material | Housing: aluminum |
| Lens mount | C-mount |

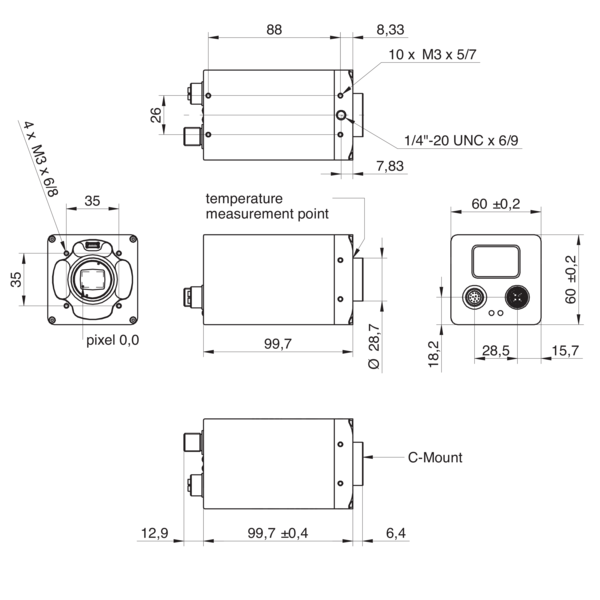

| Width x Height x Depth (mm) | 60 x 60 x 99.7 |
| Weight | approx. 485g |
| Voltage supply range | 12 … 24 V DC (external power supply) |
| Flash memory size | 128 kB |
| Operating temperature | +5 … +65 °C @ T = measurement point humidity |
| Humidity | 10 … 90 % (non-condensing) |
| Protection class | IP 40 IP 54 (with mounted tube and cable) IP 65 (with mounted tube and cable) IP 67 (with mounted tube and cable) |
| Lines | 2 input lines 4 output lines with pulse width modulation (PWM) (max. 48 V / max. 2,5 A) RS232 |
| Conformity | CE RoHS EAC |
