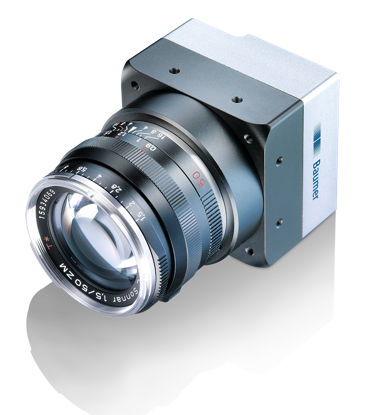

Baumer LXC-120C
- 4096 × 3072 px
- ams (CMOSIS) CMV12000
- APS-C progressive scan CMOS, global shutter
- 63 fps
- Camera Link® Full
| Model | Baumer LXC-120C |
|---|---|
| Sensor | ams (CMOSIS) CMV12000 |
| Type | APS-C progressive scan CMOS, global shutter |
| Resolution | 4096 × 3072 px |
| Exposure time | 0,02 … 1000 ms |
| Pixel Size | 5.5 × 5.5 µm |
| Image Format | Full Frame, 4096 × 3072 px, max. 63 fps |
| Pixel Format | Bayer GB 8/10 |
| Analog Controls | Gain (0 … 12 dB) Offset (0 … 63 LSB 10 Bit) |
| Color Models | Raw Bayer |
| Color Processing | NA |
| Internal Buffer | 512 MB |
| Synchronization | Free running Trigger |
| Trigger Sources | Hardware Software Action Command |
| Trigger Delay | 0 … 2 sec, tracking and buffering of up to 256 trigger signals |
| Sequencer | Automated control for series of images using different sets of parameters |
| Sequencer Parameter | exposure time gain factor output ROI Offset x ROI Offset y |
| Digital Inputs | 1 Input Line |
| Digital Outputs | 1 output line |
| Data Interface | Camera Link® Full, connector: 2 x Standard SDR26 (Mini CL) |
| Process Interface | M8 / 8 pins |
| Power Supply | M8 / 8 pins |
| Material | housing: aluminum |
| Lens Mount | M58-mount (F-mount, M42, C-mount via adapter) |

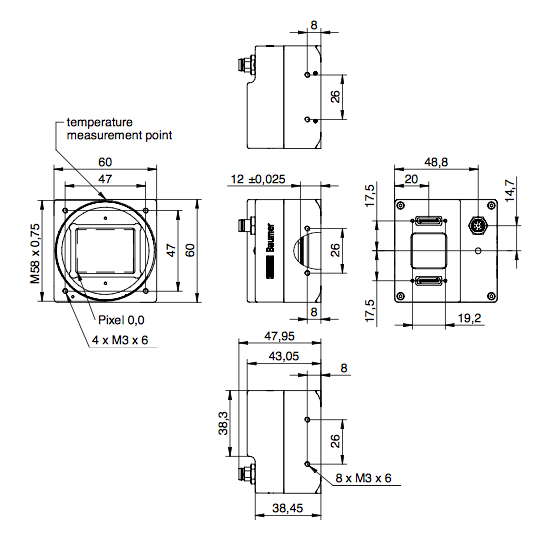

| Width x Height x Depth (mm) | 60 x 60 x 47.95 |
| Weight | ≤ 235 g |
| Voltage Supply Range +Vs | 12 … 24 V DC (external power supply) 38 … 57 V (PoCL) |
| Power Consumption | approx. 6,5 W @ 24 VDC approx. 6,5 W @ 12 VDC (PoCL) |
| Flash Memory Size | 32 Mbit |
| Operating Temperature | +5 … +64 °C @ T = measurement point |
| Humidity | 10 … 90 % (non-condensing) |
| Protection Class | IP 40 |
| Conformity | CE RoHS |
