CIS VCC-3CXP1SW
Detects wavelengths from 400 nm to 1700 nm
Main > Product > SWIR Cameras > SWIR Area Scan Cameras > SWIR Megapixels > VCC-3CXP1SW
CIS VCC-3CXP1SW
The Highlight Features
- Detects wavelengths from 400 nm to 1700 nm
- CoaXPress CXP-12 x 1 lane interface
- PoCXP compatible
- High frame rate
- Various functions: external trigger, ROI, defect pixel correction, and more

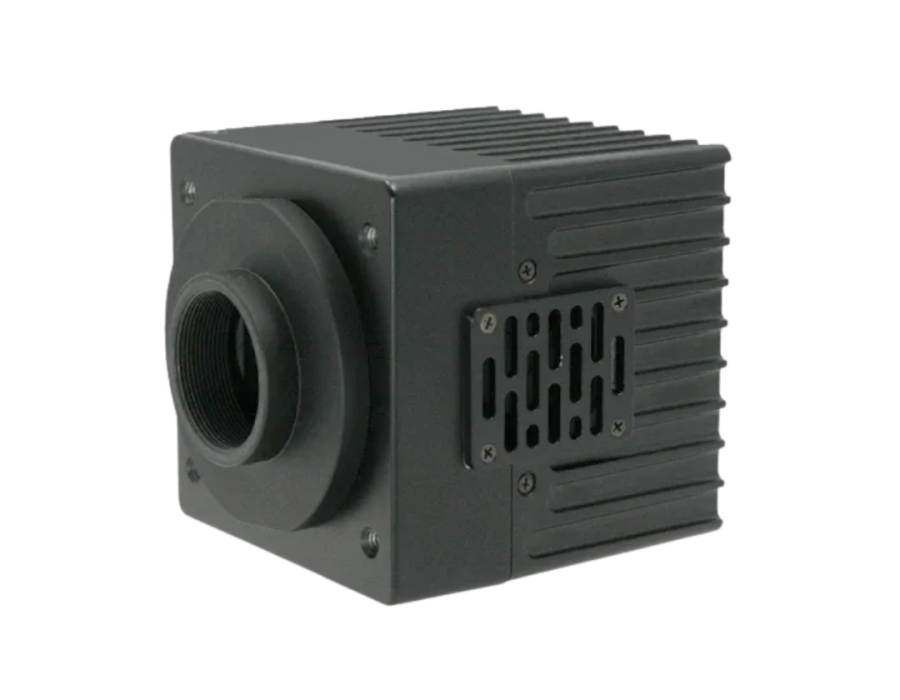

| Model | VCC-5CXP1SW |
|---|---|
| Color/Mono | SWIR |
| Resolution | 2080 x 1544 |
| fps@Max. Resolution | 173fps |
| Sensor Model Name | IMX993 |
| Shutter Type | Global shutter |
| Imager Size | 1/1.8 |
| Effective Pixels | 2080 x 1544 |
| Pixel Size (μm) | 3.45 x 3.45 |
| Power Requirement | PoCXP |
| Shutter Variable Range | TBD |
| Interface | CXP12 x 1 |
| Lens Mount | C mount |
| Weight (g) | TBD |
| Dimensions (W) x (H) x (D)mm | 65 x 65 x 65 |
| Wave Length | Short Wave IR |
