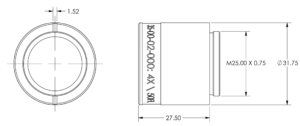

Excelitas Optem Fusion Lower Lens and Objectives 35-00-02-000
Designed for seamless integration into the infinity optical portion of either zoom or fixed optical systems
Main > Product > Machine Vision Lenses > Zoom Lenses > Optem FUSION Micro-Imaging System > Lower Lens and Objectives > 35-00-02-000
Excelitas Optem Fusion Lower Lens and Objectives 35-00-02-000
Excelitas Optem Fusion Lower Lens and Objectives 35-00-02-000 modifies taking magnification to affect field of view, NA and working distance.
Optem® FUSION Micro-Imaging Lens System is the next generation of precision micro-imaging lens system. A modular design and infinity corrected optics afford maximum versatility in machine vision, automated optical inspection and non-contact metrology. Available in manual or motorized 7:1 and 12:1 zoom and economical fixed magnification, change out modules to modify system form, function and performance.
Lower Lens and Objectives were all designed for seamless integration into the infinity optical portion of either zoom or fixed optical systems. There are considerable lower lens modules and microscope objectives to utilize in the FUSION system. This FUSION system does not “stack” additional auxiliary lenses into the system to vary the magnification and working distance, saving space and cost.
Not only the Excelitas Optem Fusion Lower Lens and Objectives 35-00-02-000 , Vital Vision provides a wide range of machine vision products. There is more than 2000 products for your different machine vision solution. To know more details, please direct to our sales person today !
The Highlight Features
- Lower lens working distances from 32 mm to 490 mm
- Lower lens numerical apertures from 0.19 to 0.0036
- Objectives from 2x to 50x (require adapter)
- Objective numerical apertures from 0.055 to 0.6
- Easily changeable at any time
- Custom designed for best optical performance with the FUSION system
