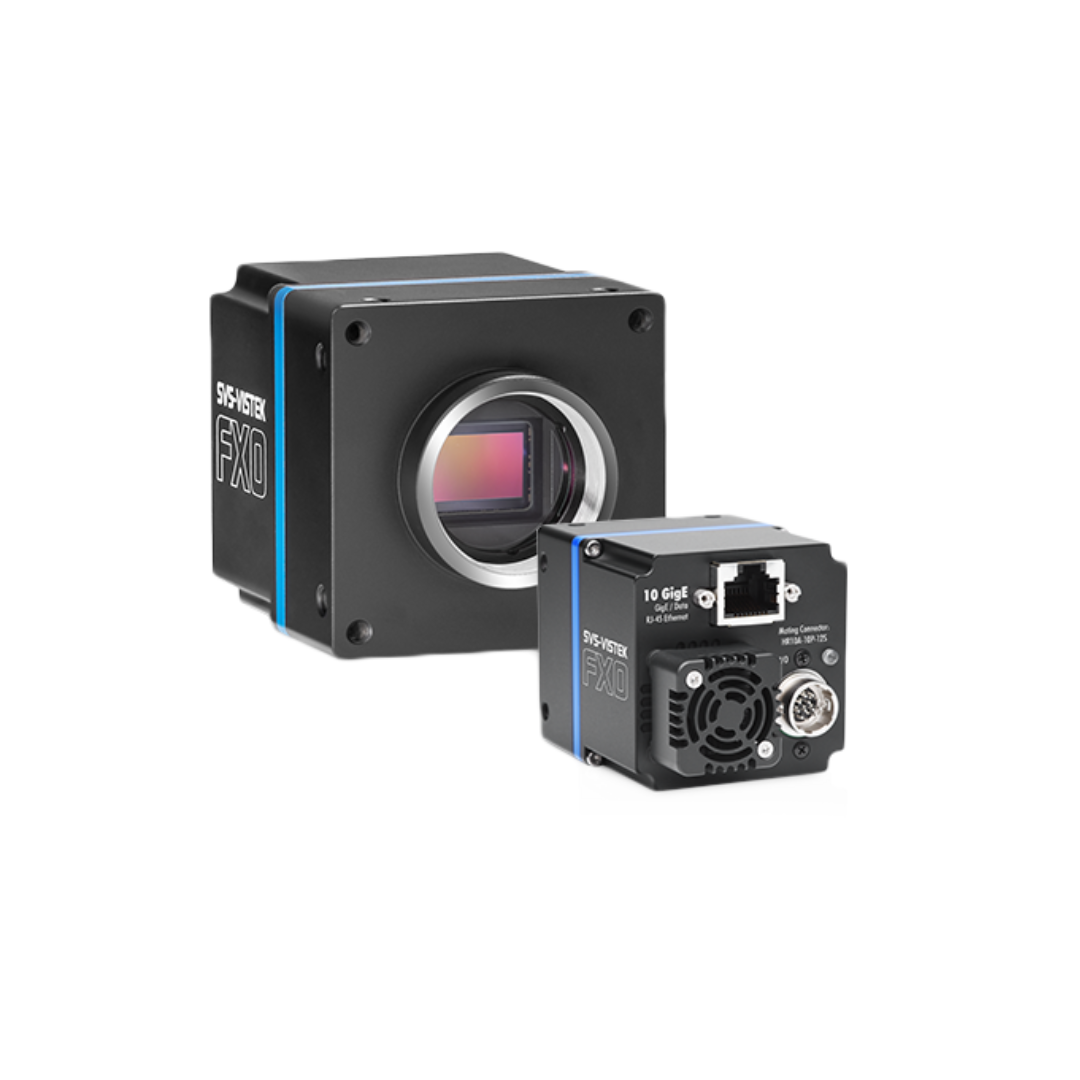

FXO 10GigE

The FXO GigE series is renowned for its outstanding image quality, denoted by the acronym “FXO”. Featuring a swift 10GigE interface, it provides exceptional cost-effectiveness while catering to the demands of expansive networks. With ample framebuffer capacity and packet resend capabilities, it ensures consistently reliable high frame rates. Modern networking technology supports cable lengths of up to 100 meters within the FXO system.

This series delivers superior, low-noise images with remarkable dynamic range, augmented by a wide array of features. Employing Sony Pregius S sensors known for their high sensitivity and uniformity, it guarantees optimal performance. Signal voltage management, temperature resilience, versatile I/O control, an integrated strobe controller, and firmware functionalities are tailored for industrial automation applications.

Feature Highlights

Sony Pregius S sensor, low-noise electronics
GenICam 3.0 software interface
10GigE interface with PoE
LUT, binning, ROI
Electrical and optical inputs
Up to 60°C operating temperature
Integrated 4-channel strobe controller
Industrial TTL-24V I/O interface with SafeTrigger, logic functions, programmable sequencers and timers, RS232 interface

Models	Interface	Sensor	Sensor Type	Spectrum	Resolution class (Mega-Pixels)	Sensor Format	FPS	Resolution	Pixel Size (µm)
fxo547CXGE	10GigE	Sony IMX547LQA	CMOS	Color	5.00	1/1.8"	124	2448 x 2048	2.74
fxo547MXGE	10GigE	Sony IMX547LLA	CMOS	Mono	5.00	1/1.8"	124	2448 x 2048	2.74
fxo546CXGE	10GigE	Sony IMX546LQA	CMOS	Color	8.10	2/3"	88	2840 x 2840	2.74
fxo546MXGE	10GigE	Sony IMX546LLA	CMOS	Mono	8.10	2/3"	88	2840 x 2840	2.74
fxo545CXGE	10GigE	Sony IMX545LQA	CMOS	Color	12.30	1/1.1"	61	4096 x 3000	2.74
fxo545MXGE	10GigE	Sony IMX545LLA	CMOS	Mono	12.30	1/1.1"	61	4096 x 3000	2.74
fxo542CXGE	10GigE	Sony IMX542LQA	CMOS	Color	16.10	1.1"	45.6	5320 x 3032	2.74
fxo542MXGE	10GigE	Sony IMX542LLA	CMOS	Mono	16.10	1.1"	45.6	5320 x 3032	2.74
fxo541CXGE	10GigE	Sony IMX541LQA	CMOS	Color	20.30	1.1"	35.7	4504 x 4504	2.74
fxo541MXGE	10GigE	Sony IMX541LLA	CMOS	Mono	20.30	1.1"	35.7	4504 x 4504	2.74
fxo540CXGE	10GigE	Sony IMX540LQA	CMOS	Color	24.50	1.2"	30.4	5320 x 4600	2.74
fxo540MXGE	10GigE	Sony IMX540LLA	CMOS	Mono	24.50	1.2"	30.4	5320 x 4600	2.74
