fxo542CCX
Easy and scalable integration, providing rich functionality with minimal design-in effort.
fxo542CCX

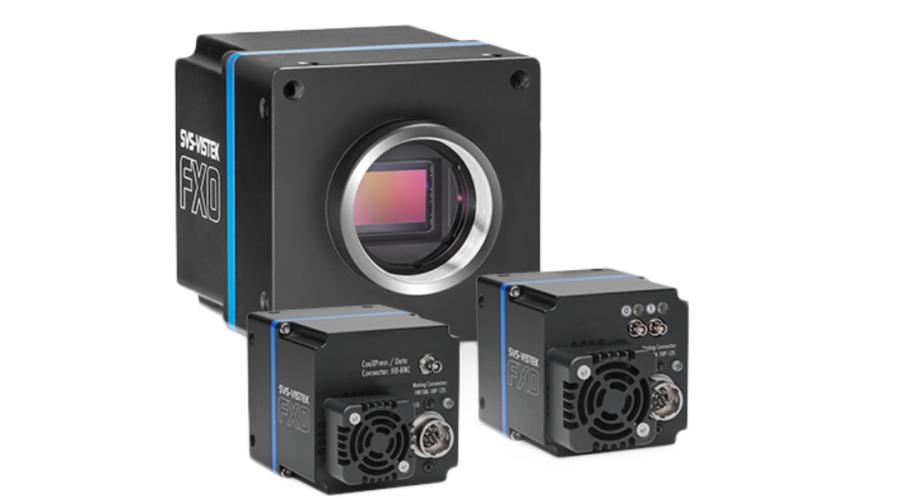

The FXO CoaXPress offers the modern Sony Pregius S sensor with a high-performance interface. This camera is characterized by excellent Jitter and latency behavior. The thin CoaXPress cable supports distances up to 25m. The solid, CNC-milled housing offers an excellent temperature management and allows an operating temperature of up to 60°C for most sensors.
Technical Highlights:
- Thermally optimized aluminum housing
- extremely low Jitter
- CoaXPress-12 interface, PoCXP
- Integrated 4-channel LED strobe controller
- ROI, binning, lookup tables
- IO interface with 2xIN, 4xOUT, Opto and RS232 with SafeTrigger, programmable timers, logic functions (PLC) and sequencer
| Model | fxo542CCX |
|---|---|
| Resolution [MP] | 16.1 MP |
| Resolution (h x v) | 5320 x 3032 px |
| Frame rate (max.) | 45.6 fps |
| Chroma | color |
| Interface | CXP-12 with 1 Connection |
| (micro-BNC) | |
| Sensor | |
| Sensor | IMX542LQA |
| Manufacturer | Sony |
| Sensor type | Area CMOS |
| Shutter type | global shutter |
| Sensor size (h x v) | 14.58 x 8.31 mm |
| Optical diagonal | 16.78 mm |
| Sensor format | 16.8mm (Type 1.1) |
| Pixel size (h x v) | 2.74 x 2.74 µm |
| Camera | |
| Exposure modes | MANUAL;AUTO |
| Trigger modes | INTERNAL;SOFTWARE;EXTERNAL |
| Exposure time (min) | 21 µs |
| Exposure time (max) | 1 sec |
| Pixel format / max | bayer8, bayer12 / 12 bit |
| Gain modes | manual, auto |
| S/N ratio (max) | 39.1 dB (dep. on environment) |
| Dynamic range (max) | 72 dB (dep. on environment) |
| Internal memory | 1024 MB SDRAM, 256 MB Flash |
| Feature Set | |
| Manual white balance | yes |
| Automatic white balance | yes |
| AOI | yes |
| LUT | yes |
| Offset | yes |
| Binning | yes |
| Image flip | yes |
| Sequencer | yes |
| PoCXP | yes |
| Housing | |
| Lens mount | C-Mount |
| Dimensions (w x h x d) | 50 x 50 x 70.1 mm |
| Weight | 240 g |
| Operating temperature (housing) | -10 to 65 °C |
| Ambient humidity | 10 to 90 % (non-condensing) |
| Protection class | IP30 |
| Filter-/Coverglass | IR-Cut 680 |
| I/O-Interfaces | |
| Input up to 24V | 2 x |
| Input OPTO | 1 x |
| Output open drain | 4 x |
| I/O RS-232 | 1 x |
| Power supply | 10 to 25 V (DC) |
| Power consumption | 8 W (dep. on operating mode) |
