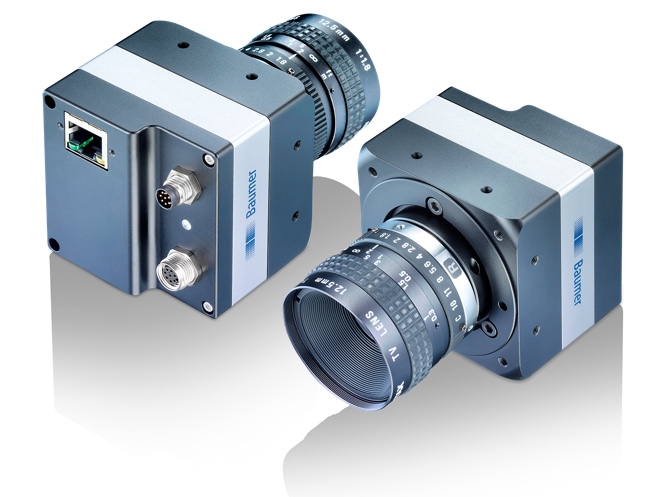

Baumer LXG-20M.PS Visual Applet Camera
Increase throughput, simplify system design or lower system costs. Complex algorithms can be implemented quickly and easily. 3D cameras for high-performance laser triangulation.
- 2048 × 1088 px
- ams (CMOSIS) CMV2000 V3
- 2/3″ progressive scan CMOS, global shutter
- 338 fps
- Gigabit Ethernet
| Model | LXG-20M.PS |
|---|---|
| Sensor | ams (CMOSIS) CMV2000 V3 |
| Type | 2/3″ progressive scan CMOS, global shutter |
| Resolution | 2048 × 1088 px |
| Exposure Time | 0,03 … 1000 ms |
| Pixel Size | 5.5 × 5.5 µm |
| Image formats | Full Frame, 2048 × 1088 px, max. 338 fps |
| Pixel formats | Mono 8/10 |
| Color models | Mono |
| Internal buffer | 512 mb |
| Synchronization | Free running, trigger |
| Trigger sources | Hardware, Software, Action Command |
| Data interface | Gigabit Ethernet, Transfer rate 1000 Mbits/sec, Connector: 8P8C Modular Jack (RJ45), screwable type |
| Process interface | M8 / 8 pins (2x) |
| Power supply | M8 / 8 pins |
| Material | Housing: aluminum |
| Lens mount | M58-mount (F-mount, M42, C-mount via adapter) |

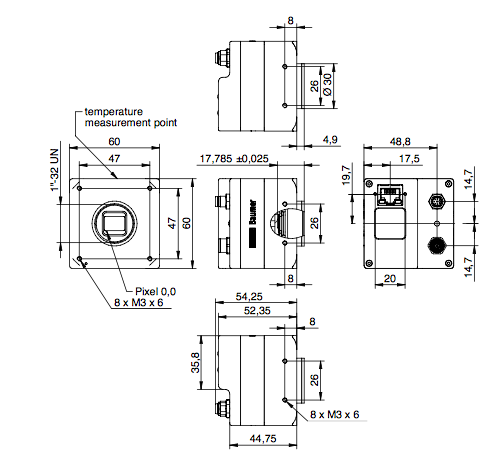

| Width x Height x Depth (mm) | 60 x 60 x 54.25 |
| Weight | approx. 340g |
| Voltage supply range | 12 … 24 V DC (external power supply) 36 … 57 V DC (Power over Ethernet) |
| Power consumption | approx. 5,8 W @ 24 VDC approx. 6,7 W @ 48 VDC (PoE) |
| Flash memory size | 1024 Mbit |
| Operating temperature | +5 … +50 °C @ T = measurement point |
| Humidity | 10 … 90 % (non-condensing) |
| Protection class | IP 40 |
| Lines | 1 input line 3 output line |
| Conformity | CE RoHS |
