VS-L3528/F
The VS-L3528/F is an outstanding addition to our Large Format / Line Scan Macro Lens series, designed to meet your imaging demands with precision. Featuring a 35mm focal length, this lens opens up new possibilities in your imaging projects. It offers a versatile optical magnification range, spanning from 0.05x to 0.3x, ensuring adaptability to various applications. With a working aperture range from F/2.8 to F/3.5, this lens guarantees optimal image quality and clarity. Boasting a generous image circle of Φ45, it ensures distortion-free imaging, making it the perfect choice for tasks demanding large format and line scan accuracy. Whether you’re involved in industrial quality control, inspection, or other specialized imaging, the VS-L3528/F is your reliable tool for achieving exceptional results.
| Model | VS-L3528/F | |||
|---|---|---|---|---|
| Focal length(f) | 35mm (36.19) | |||
| Optical mag. range | (∞)×0.05~×0.3 | |||
| Optical mag. | ×0.05 | ×0.1 | ×0.2 | ×0.3 |
| WD | 706.9mm | 346.8mm | 169.5mm | 112.8mm |
| O/I (Object & Imager distance) | 824.9mm | 464.8mm | 287.5mm | 230.8mm |
| Aperture | 2.8~16 | |||
| Working F/# *Value at Iris open | 2.84 | 2.98 | 3.25 | 3.52 |
| DOF at PCoC φ0.04mm | 90.9mm | 23.8mm | 6.5mm | 3.1mm |
| TV distortion (max.) | -0.0009 | |||
| Operation of iris & focus | Manual (Lock screw M2) | |||
| Wavelength | Visible (400nm - 700nm) | |||
| Mount | F-mount | |||
| Flange back | 46.5mm | |||
| Image circle | φ45 | |||
| Filter thread | M62 P=0.75 | |||
| Weight (approx.) | 355g | |||

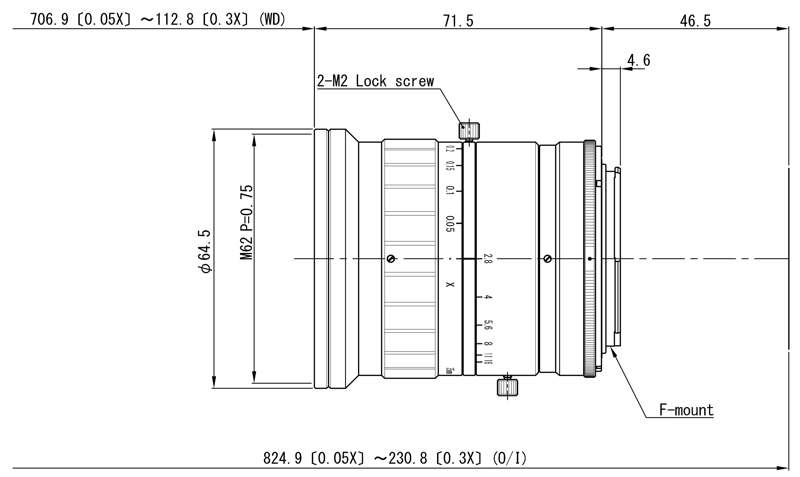

| Dimension | φ64.5(MAX) x L=71.5mm |
