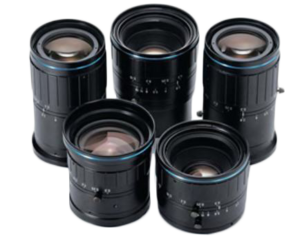

VS-L (F) series

11 lineups with focal length range f18mm-f185mm.
Two types of line scan zoom lenses are also available
High resolution and distortionless design

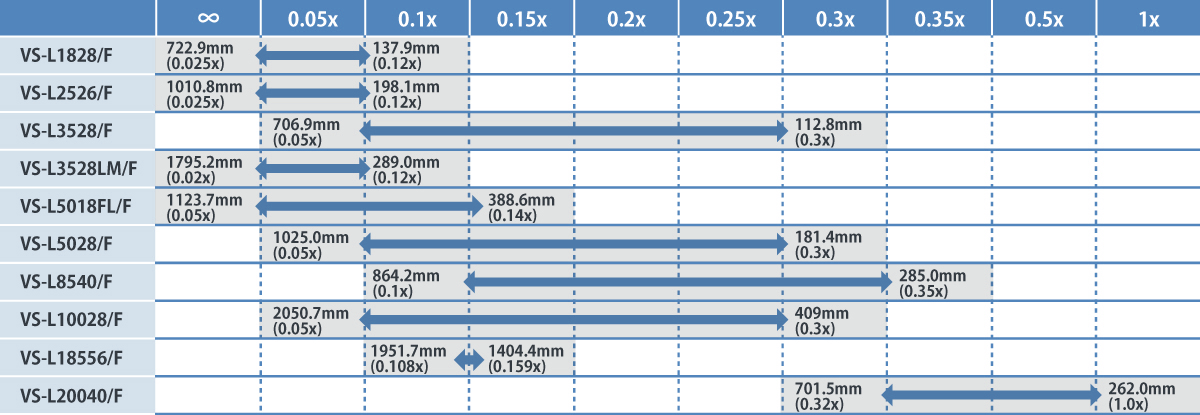

VS-L (F) Magnification chart

ModelWD (mm)Opti. Mag. RangeCamera MountFloating
VS-L1828/F722.9(0.025x)~137.9(0.12x)0.025x~0.12xF-Mount-
VS-L2526/F1010.8(0.025x)~198.1(0.12x)0.025x~0.12xF-Mount-
VS-L3528/F706.9(0.05x)~112.8(0.3x)0.05x~0.3xF Mount-
VS-L3528LM/F1795.2(0.02x)~289.0(0.12x)0.02x~0.12xF-Mount-
VS-L5018FL/F1123.7(0.05x)~388.6(0.14x)0.05x~0.14xF Mount
VS-L5028/F1025(0.05x)~181.4(0.3x)0.05x~0.3xF Mount-
VS-L8540/F864.2(0.1x)~285.0(0.35x)0.1x~0.35xF Mount-
VS-L10028/F2050.7(0.05x)~409(0.3x)0.05x~0.3xF Mount-
VS-L18556/F1951.7(0.108x)~1404.4(0.159x)0.108x~0.159xF-Mount-
