VS-L5018FL/F
Introducing the VS-L5018FL/F, a remarkable addition to our Large Format / Line Scan Macro Lens series. With a substantial 50mm focal length, this lens opens up a world of imaging possibilities, catering to various applications. Covering an optical magnification range from 0.05x to 0.14x, it ensures adaptability and clarity in your projects. Operating within a working aperture range of F/2.0 to F/2.2, it guarantees high-quality image capture, even in challenging conditions. The VS-L5018FL/F is equipped with a generous image circle of Φ45, ensuring distortion-free imaging, making it the perfect choice for tasks demanding large format and line scan precision. Whether you’re involved in industrial quality control, inspection, or specialized imaging, this lens delivers exceptional results with precision and excellence.
| Model | VS-L5018FL/F | ||
|---|---|---|---|
| Focal length(f) | 51.6 | mm | |
| Optical mag. range | (∞) × 0.05~× 0.14 | ||
| Optical mag. | × 0.05 | × 0.10 | × 0.14 |
| WD | 1123.7mm | 533.6mm | 388.6mm |
| O/I (Object & Imager distance) | 1223.7mm | 633.6mm | 488.6mm |
| Aperture | 1.8~16 | ||
| Working F/# *Value at Iris open | 1.95 | 2.07 | 2.16 |
| DOF at PCoC φ0.04mm | 31.2mm | 8.3mm | 4.4mm |
| TV distortion (max.) | -0.52% | ||
| Operation of iris & focus | Manual (Lock screw M2) | ||
| Wavelength | Visible | ||
| Mount | F-mount | ||
| Flange back | 46.5mm | ||
| Image circle | φ45 | ||
| Filter thread | M62 P=0.75 | ||
| Weight (approx.) | 350g | ||

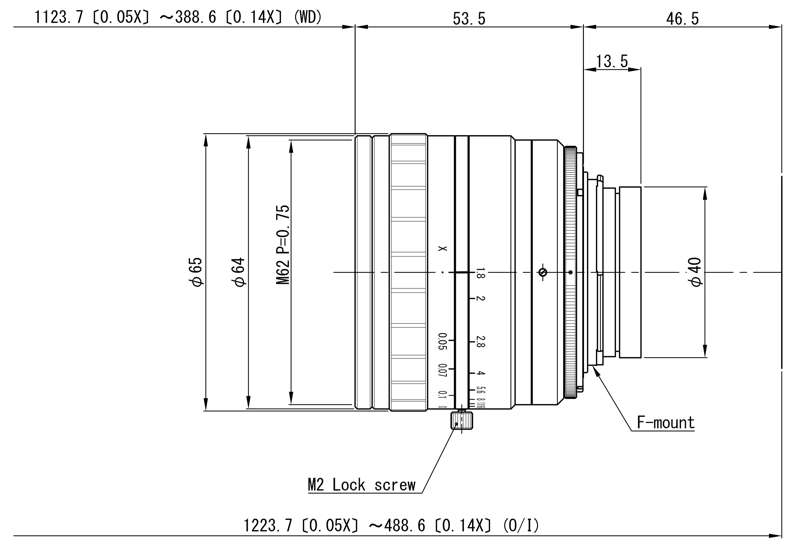

| Dimension | φ65(MAX) xL=53.5mm |
