VS-L3528FL/F
The VS-L3528FL/F, part of our Large Format / Line Scan Macro Lens series, is engineered for precision and excellence. With a 35mm focal length, it offers a wide array of imaging possibilities, making it a versatile choice for various applications. Covering an optical magnification range from 0.04x to 0.15x, this lens ensures adaptability and clarity in your projects. Operating within a working aperture range of F/2.9 to F/3.1, it guarantees high-quality image capture. With a generous image circle of Φ43, distortion-free imaging is a given, making it an ideal choice for tasks demanding large format and line scan precision. Whether you’re involved in industrial quality control, inspection, or specialized imaging, the VS-L3528FL/F is your dependable tool for achieving exceptional results.
| Macro lens for large format | ||||
|---|---|---|---|---|
| Model | VS-L3528FL/F | |||
| Focal length(f) | 35mm | |||
| Optical mag. range | (∞)×0.04~×0.15 | |||
| Optical mag. | ×0.04 | ×0.07 | ×0.10 | ×0.15 |
| WD | 884.5mm | 498.5mm | 344.7mm | 225.9mm |
| O/I (Object & Imager distance) | 1018.5mm | 632.8mm | 479.0mm | 359.9mm |
| Aperture | 2.8~16 | |||
| Working F/# *Value at Iris open | 2.93 | 2.98 | 3.04 | 3.13 |
| DOF at PCoC φ0.04mm | 146.5 | 48.6 | 24.3 | 11.1 |
| TV distortion (max.) | -0.0033 | |||
| Operation of iris & focus | Manual (Lock screw M2) | |||
| Wavelength | Visible (400nm - 700nm) | |||
| Mount | F-mount | |||
| Flange back | 46.5mm | |||
| Image circle | φ43 | |||
| Filter thread | M62 P=0.75 | |||
| Weight (approx.) | 460g | |||

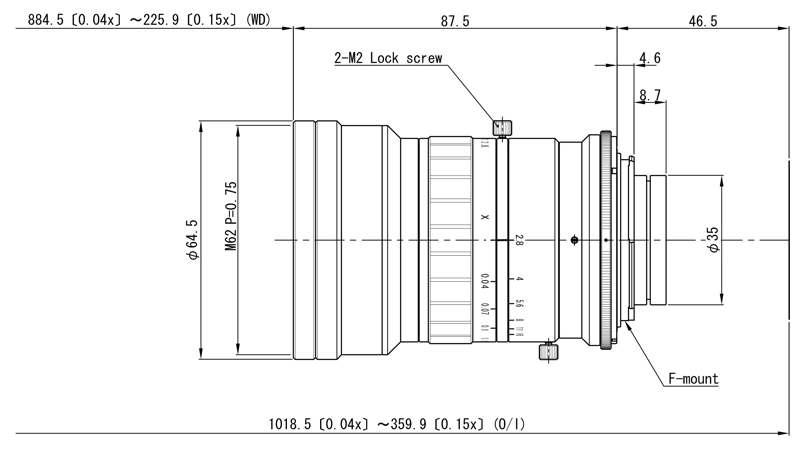

| Dimension | φ64.5(MAX) x L=87.5mm |
