VS-L5028FL/F
The VS-L5028FL/F is a remarkable addition to our Large Format / Line Scan Macro Lens series, engineered for precision and versatility. With a 50mm focal length, this lens provides a wide range of imaging possibilities, making it an ideal choice for various applications. It offers an optical magnification range from 0.04x to 0.15x, ensuring adaptability and clarity in your projects. Operating within a working aperture range of F/3.0 to F/3.3, it guarantees high-quality image capture even in challenging conditions. The VS-L5028FL/F boasts a substantial image circle of Φ43, ensuring distortion-free imaging, making it the perfect choice for tasks demanding large format and line scan precision. Whether you’re involved in industrial quality control, inspection, or specialized imaging, this lens delivers exceptional results with precision and excellence.
| Macro lens for large format | ||||
|---|---|---|---|---|
| Model | VS-L5028FL/F | |||
| Focal length(f) | 50mm | |||
| Optical mag. range | (∞)×0.04~×0.15 | |||
| Optical mag. | ×0.04 | ×0.07 | ×0.10 | ×0.15 |
| WD | 1294.7mm | 744.2mm | 525.2mm | 356.1mm |
| O/I (Object & Imager distance) | 1405.2mm | 854.7mm | 635.7mm | 466.6mm |
| Aperture | 2.8~16 | |||
| Working F/# *Value at Iris open | 2.98 | 3.08 | 3.18 | 3.34 |
| DOF at PCoC φ0.04mm | 149 | 50.3 | 25.4 | 11.9 |
| TV distortion (max.) | 0.0001 | |||
| Operation of iris & focus | Manual (Lock screw M2) | |||
| Wavelength | Visible (400nm - 700nm) | |||
| Mount | F-mount | |||
| Flange back | 46.5mm | |||
| Image circle | φ43 | |||
| Filter thread | M58 P=0.75 | |||
| Weight (approx.) | - | |||

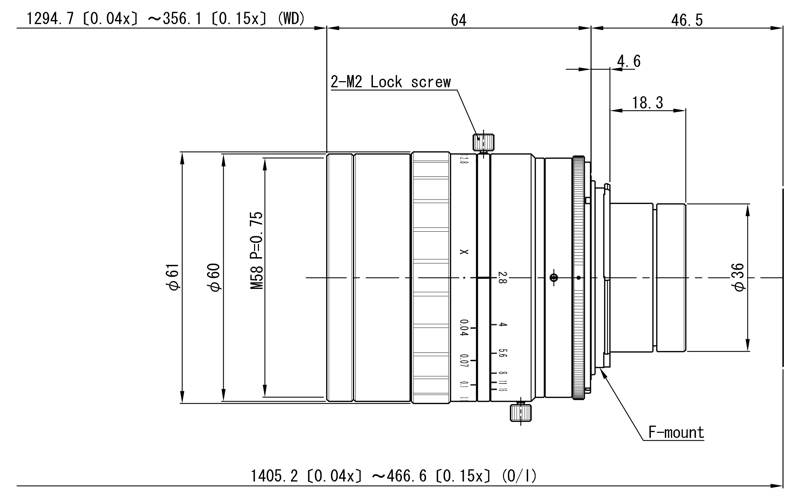

| Dimension | φ61(MAX) x L=64mm | |||
| Optical Data | ||||
| Front principle point | mm | |||
| FPP RPP distance | mm | |||
| Optical over all length | mm | |||
| Back focus | mm(in air) | (∞) |
