VS-L20040/F
The VS-L20040/F is a standout addition to our Large Format / Line Scan Macro Lens series, designed for precision imaging. With an extensive 200mm focal length, this lens opens up a world of possibilities for your imaging projects, offering an optical magnification range from 0.32x to 1.0x. Operating within a working aperture range of F/4.6 to F/5.9, it ensures high-quality image capture even in challenging conditions. Boasting an image circle of Φ35.2, the VS-L20040/F guarantees distortion-free imaging, making it the ideal choice for tasks demanding large format and line scan precision. Whether you’re involved in industrial quality control, inspection, or other specialized imaging, this lens delivers exceptional results with precision and excellence.
| Model | VS-L20040/F | |
|---|---|---|
| Focal length(f) | 200 mm | |
| Optical mag. range | × 0.32 - x 1.0 | |
| Optical mag. | × 0.32 | × 1.0 |
| WD | 701.5 mm | 262.0 mm |
| O/I (Object & Imager distance) | 939.5 mm | 500.0 mm |
| Aperture | F 4.0 - 32 | |
| Working F/# *Value at Iris open | 4.6 | 5.9 |
| NA | 0.035 | 0.084 |
| DOF at PCoC φ0.04mm | 3.6 mm | 0.5 mm |
| TV distortion (max.) | 0.14 % | 0.16 % |
| Operation of iris & focus | 55 % | 90 % |
| Operation | Manual (Lock crew M2) | |
| Wavelength | Visible | |
| Mount | F-mount | |
| Flange back | 46.5mm | |
| Image circle | φ45mm | |
| Sensor Size | Super 35mm | |
| Filter thread | M62 P=0.75 | |
| Weight (approx.) | 1100g | |

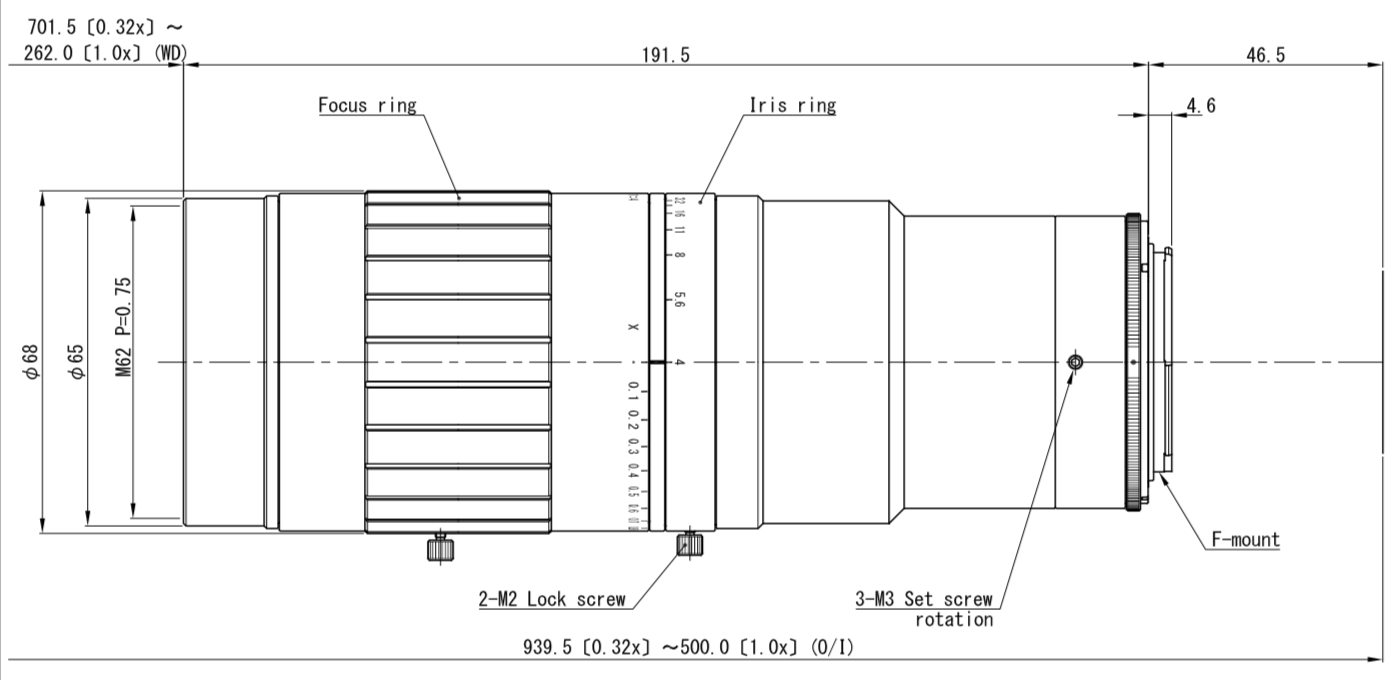

| Dimension | φ68(max.) x L=191.5 |
