VS-L8540/F
The VS-L8540/F, part of our Large Format / Line Scan Macro Lens series, is designed to deliver precision and excellence in your imaging projects. With a substantial 85mm focal length, this lens offers a wide range of imaging possibilities, making it ideal for various applications. It covers an optical magnification range from 0.1x to 0.35x, ensuring adaptability and clarity. Operating within a working aperture range of F/4.4 to F/5.4, it guarantees high-quality image capture even in challenging conditions. Boasting a generous image circle of Φ50, the VS-L8540/F ensures distortion-free imaging, making it an ideal choice for tasks demanding large format and line scan precision. Whether you’re engaged in industrial quality control, inspection, or other specialized imaging, this lens delivers exceptional results with precision and excellence.
| Model | VS-L8540/F | |||
|---|---|---|---|---|
| Focal length(f) | 85mm (84.03) | |||
| Optical mag. range | 0.1x~0.35x | |||
| Optical mag. | 0.1x | 0.2x | 0.3x | 0.35x |
| WD | 864.2 | 452.5 | 320.8 | 285 |
| O/I (Object & Imager distance) | 1003.7 | 592 | 460.3 | 424.5 |
| Aperture | 4~16 | |||
| Working F/# *Value at Iris open | 4.4 | 4.8 | 5.2 | 5.4 |
| DOF at PCoC φ0.04mm | 35.2 | 9.6 | 4.6 | 3.5 |
| TV distortion (max.) | 0 | |||
| Operation of iris & focus | Manual (Lock screw M2) | |||
| Wavelength | Visible (400nm - 700nm) | |||
| Mount | F-mount | |||
| Flange back | 46.5mm | |||
| Image circle | φ50 | |||
| Filter thread | M52 P=0.75 | |||
| Weight (approx.) | 346g | |||

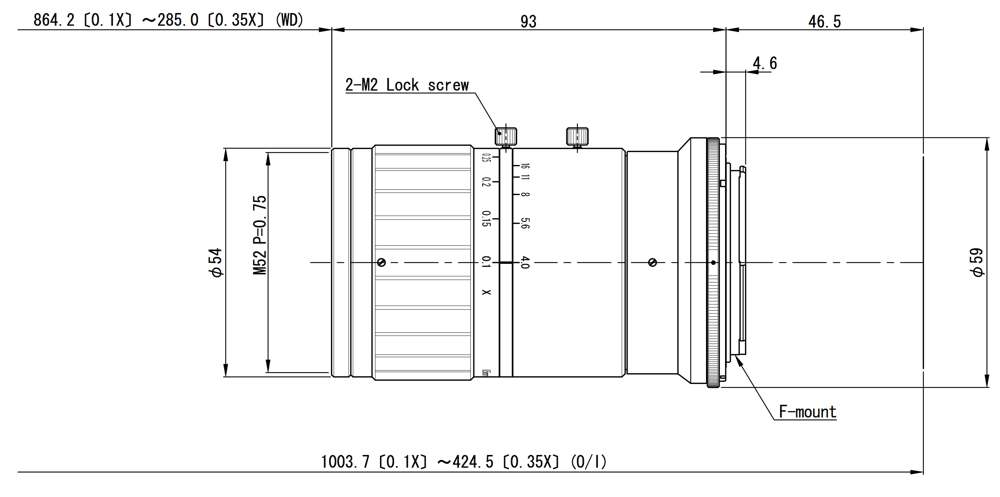

| Dimension | φ59(max) x L=93.0mm |
