VS-LZ0510/F
11 lineups with focal length range f18mm-f185mm.
Two types of line scan zoom lenses are also available
High resolution and distortionless design
| Zoom lens for large format | |||
|---|---|---|---|
| Model | VS-LZ0510/F | ||
| Optical mag. range | ×0.5~×1.0 | ||
| Optical mag. | ×0.5 | ×0.75 | ×1.0 |
| WD | 111.6mm | ||
| O/I (Object & Imager distance) | 404.6mm | ||
| Working F/# *Value at Iris open | 2.6 | 3.6 | 4.5 |
| NA | 0.096 | 0.104 | 0.111 |
| Resolution *at λ550nm | 3.49 μ | 3.23 μ | 3.02 μ |
| DOF at PCoC φ0.04mm | 0.8 mm | 0.5 mm | 0.4 mm |
| TV distortion (Y=21) | -0.49% | 0.33 % | 0.04 % |
| Relative illuminance(Y=21) | 0.67 | 0.81 | 0.88 |
| Operation of iris & zoom | Manual (Lock screw M2) | ||
| Wavelength | Visible (400nm - 700nm) | ||
| Mount | F-mount | ||
| Flange back | 46.5mm | ||
| Image circle | φ42 | ||
| Filter thread | M67 P=0.75 | ||
| Weight (approx.) | g | ||

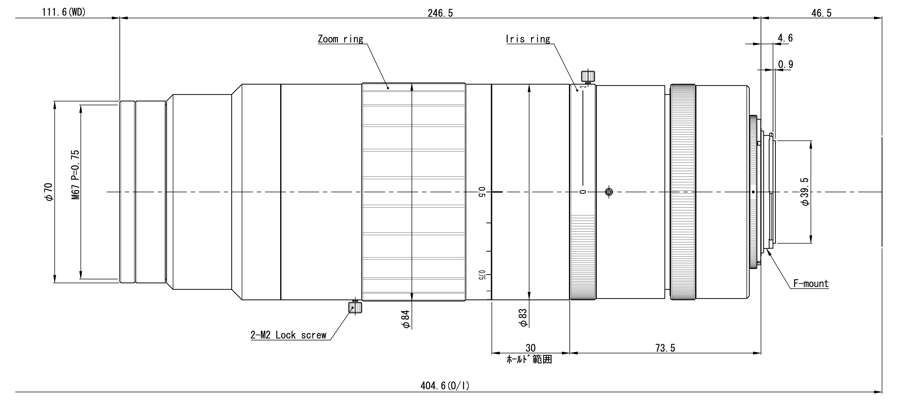

| Dimension | φ84(MAX) x L=246.5mm |
