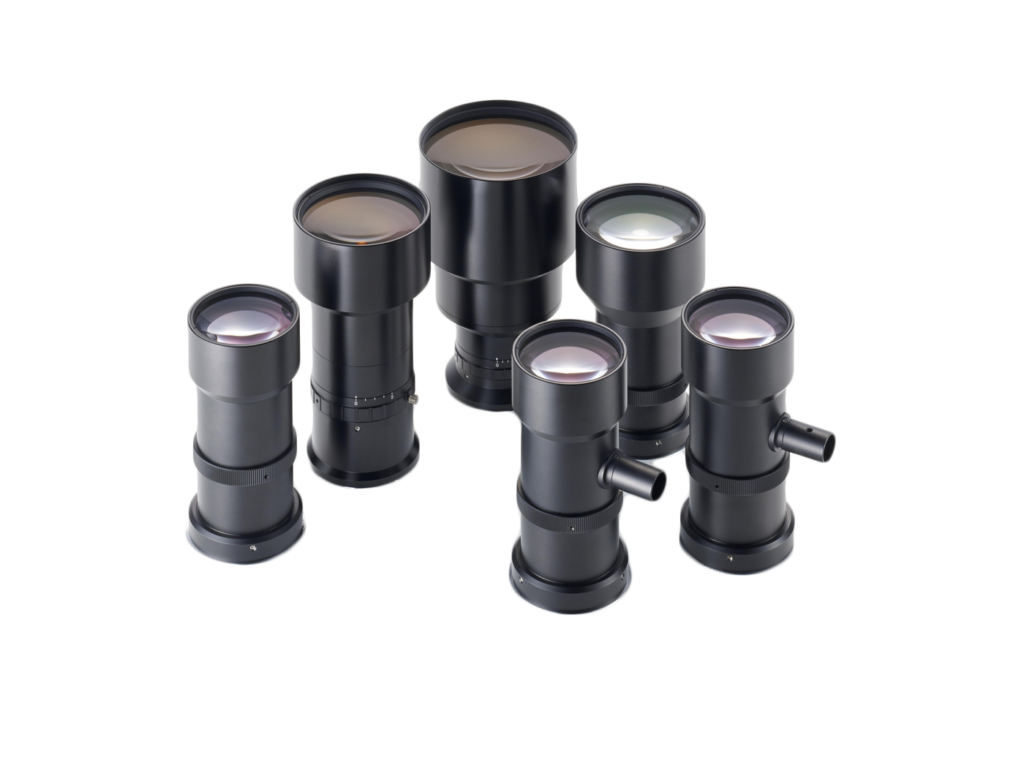

VS-LTC03-130/FS
For sensors 21mm ～ 35mm long. Specially designed for large format line scan sensors. Adjustable DOF and contrast with iris control: 0.3x – 2.0x. Reduce shading. High Resolution, Contrast and Telecentricity. Bi-Telecentric lens models are available
| Model | VS-LTC03-130/FS |
|---|---|
| Optical Mag. | × 0.3 ± 5% |
| FOV | 73.3 mm |
| WD | 130.2 mm ± 4 |
| O/I (Object & Imager Distance) | 340.2mm |
| Working F/# | 5.8 |
| NA | 0.026 |
| DOF at PCoC φ0.04mm | 5.2mm |
| TV distortion (φ22mm) | 0.01% |
| Relative illuminance(φ22mm) | 94 % |
| Wavelength | Visible |
| Camera Mount | F-mount |
| Flange Back | 46.5 mm |
| Image circle | φ22mm |
| Filter thread | M 82 P= 0.75 |
| Weight (approx.) | 960 g |
| Dimension | φ 84 (max.) × L= 163.5mm |
