Machine Vision Macro Lenses:
Super Compact Model
VS-MC Compact Series

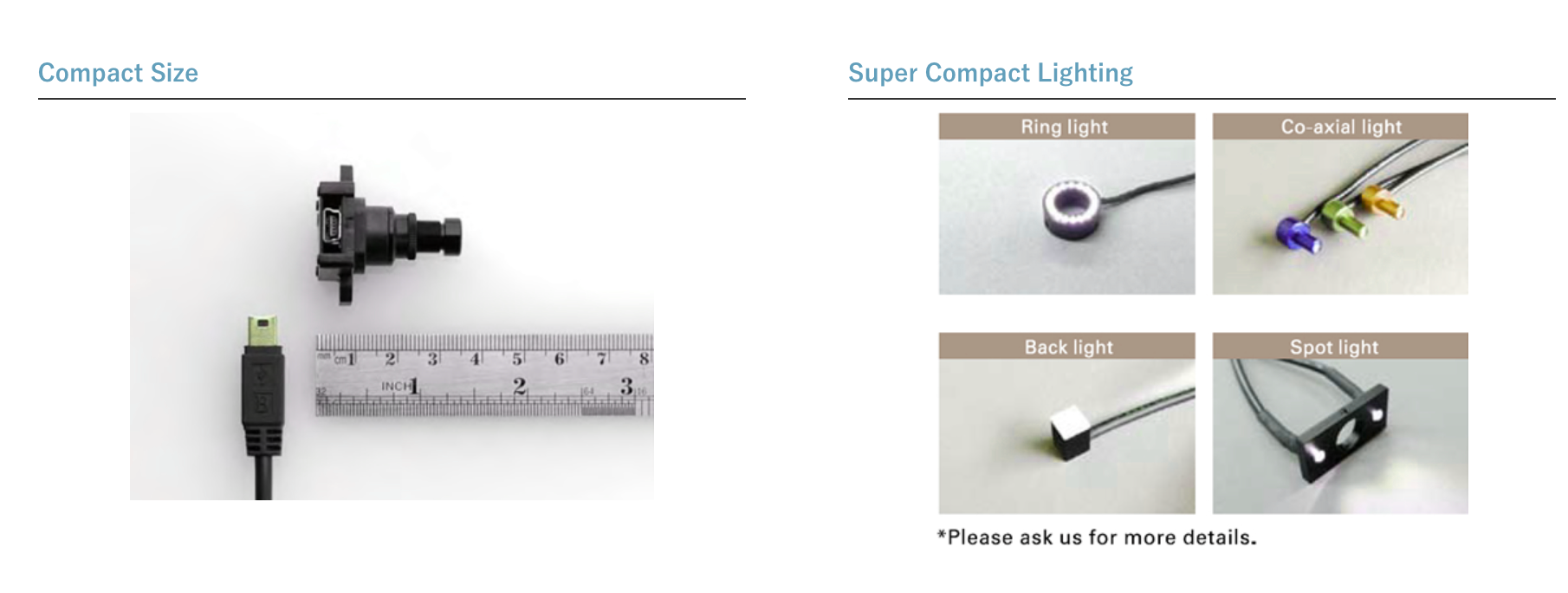

Super compact macro lens, camera and lighting
Best for use in small spaces
M10.5P ＝ 0.5 camera mount
| Model | VS-MC0576N | ||
|---|---|---|---|
| Optical mag. range | ×0.365 ~ ×0.85 | ||
| Optical mag. | × 0.365 | × 0.576 | × 0.85 |
| FOV (VxH mm) | 4.7 × 6.3 | 3.0 × 4.0 | 2.0 × 2.7 |
| WD | 56.6 mm | 40.0 mm | 30.7 mm |
| O/I (Object & Imager distance) | 85.1 mm | 72.0 mm | 67.2 mm |
| Working F/# | 9.5 | 11 | 7.6 |
| NA | 0.019 | 0.026 | 0.056 |
| DOF at PCoC φ0.04mm | 5.7 mm | 2.6 mm | 0.8 mm |
| Resolution *at λ550nm | 17.7 μ | 12.9 μ | 6.0 μ |
| TV distortion(1/6") | -0.0001 | 0 | 0 |
| Wavelength | Visible | ||
| Camera mount | M12 P=0.5 | ||
| Flange Back | 9.89 mm | ||
| Sensor size (max.) | 1/6” (φ3.7) | ||
| Weight (approx.) | -g | ||
| Dimension | Φ 14.0 ×L= | 18.6 (×0.365) | ~ 26.6 (×0.85) mm |
| Model | VS-MC1375-40N | ||
|---|---|---|---|
| Optical mag. range | ×0.85 ~ ×1.375 | ||
| Optical mag. | × 0.85 | × 1.0 | × 1.375 |
| FOV (VxH mm) | 2.0 × 2.7 | 1.7 × 2.3 | 1.3 × 1.7 |
| WD | 43.5 mm | 42.1 mm | 39.8 mm |
| O/I (Object & Imager distance) | 64.1 mm | 64.0 mm | 64.8 mm |
| Working F/# | 7.4 | 8.5 | 11 |
| NA | 0.057 | 0.059 | 0.063 |
| DOF at PCoC φ0.04mm | 0.8 mm | 0.7 mm | 0.5 mm |
| Resolution *at λ550nm | 5.9 μ | 5.7 μ | 5.3 μ |
| TV distortion | 0.0053 | 0.0044 | 0.003 |
| Wavelength | Visible | ||
| Camera mount | M12 P=0.5 | ||
| Flange Back | 9.89 mm | ||
| Sensor size (max.) | 1/6” (φ3.7) | ||
| Weight (approx.) | -g | ||
| Dimension | Φ 14.0 ×L= | 10.7 (×0.85) ~ | 15.1(×1.375) mm |
| Modelname | Opt. Mag. | WD(mm) | Working F/# | FOV(VxH mm) | TV Distortion | Sensor Size |
|---|---|---|---|---|---|---|
| VS-MC1375-40N | 0.85x~1.375x | 43.5~39.8 | 7.44~11.00 | 2.0x2.7~1.3x1.7 | 0.53%~0.30% | 1/6" |
| VS-MC0576N | 0.365x~0.85x | 56.6~30.7 | 9.53~7.57 | 4.7x6.3~2.0x2.7 | -0.01%~0.00% | 1/6" |
