VS-HVA0828
The VS-HVA0828, part of the VS-HVA Series, is a lens with specific specifications tailored for various imaging applications. It features a focal length of 8mm, a minimum object distance (M.O.D) of 100mm, and an adjustable aperture with an F-number ranging from F2.8 to Close. The lens has a diameter of67.2mm and a length of 53.86mm, contributing to the compact design highlighted in the VS-HVA Series. With these specifications, the VS-HVA0828 is designed to provide versatility and precision in imaging, suitable for scenarios where a 8mm focal length and compact form factor are essential.
| Model Name | VS-HVA0828 |
|---|---|
| Focal Length (f) | 8mm |
| Maximum Aperture Ratio | 1： 2.8 |
| Aperture | F2.8 ~ Close |
| Angle of View (1.1") | 65.3° × 82.6° (Diagonal：：94.2° ) |
| M.O.D | 100 mm |
| TV Distortion (1.1") | 0.52% |
| Operation | Manual （Lock screw M2） |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526mm |
| Sensor Size (max.) | 1.1" |
| Filter Thread | - |
| Weight （approx.） | 235g |

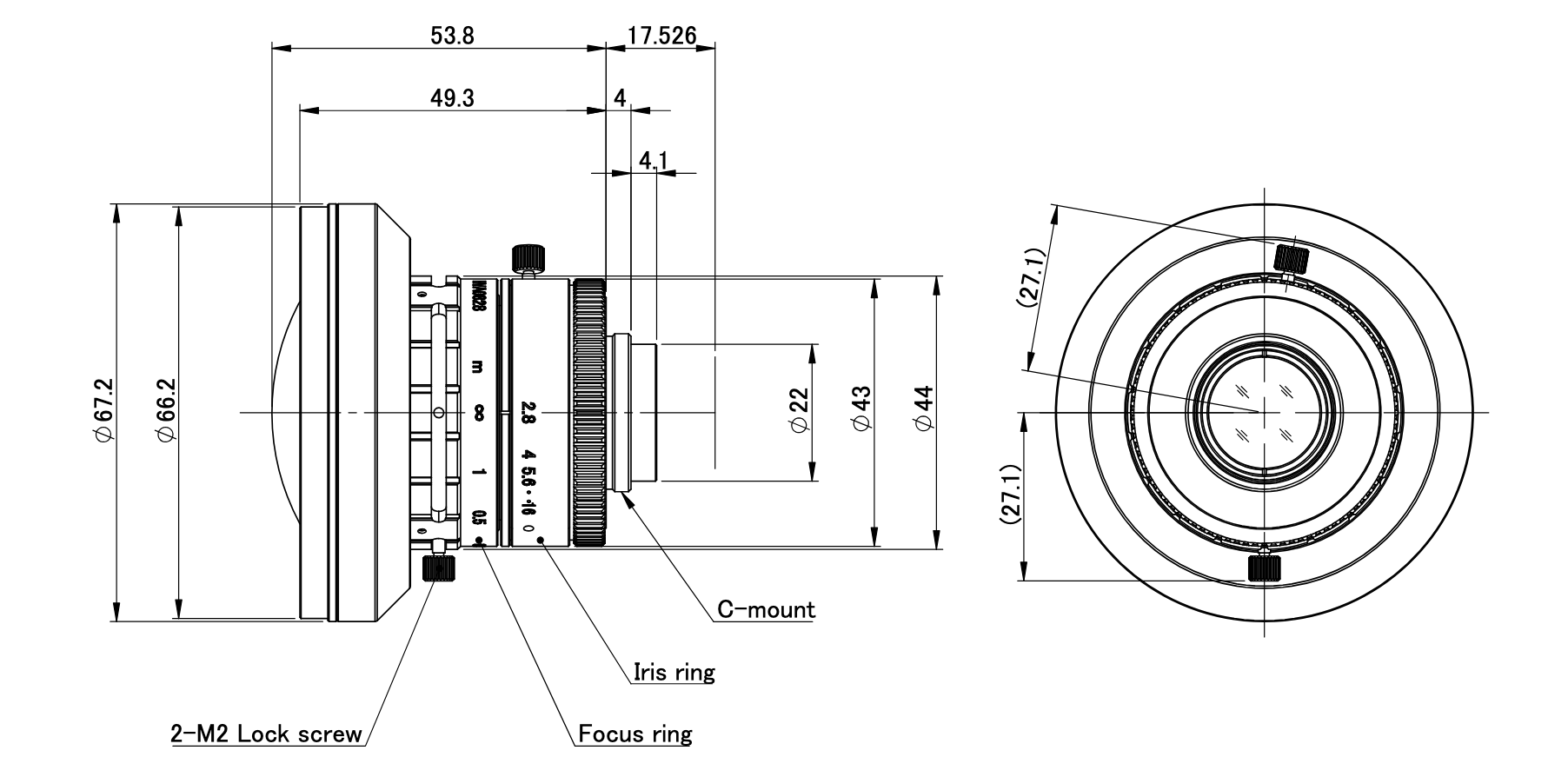

| Dimension | φ67.2(max) x L=53.8mm |
