VS-HVA Series

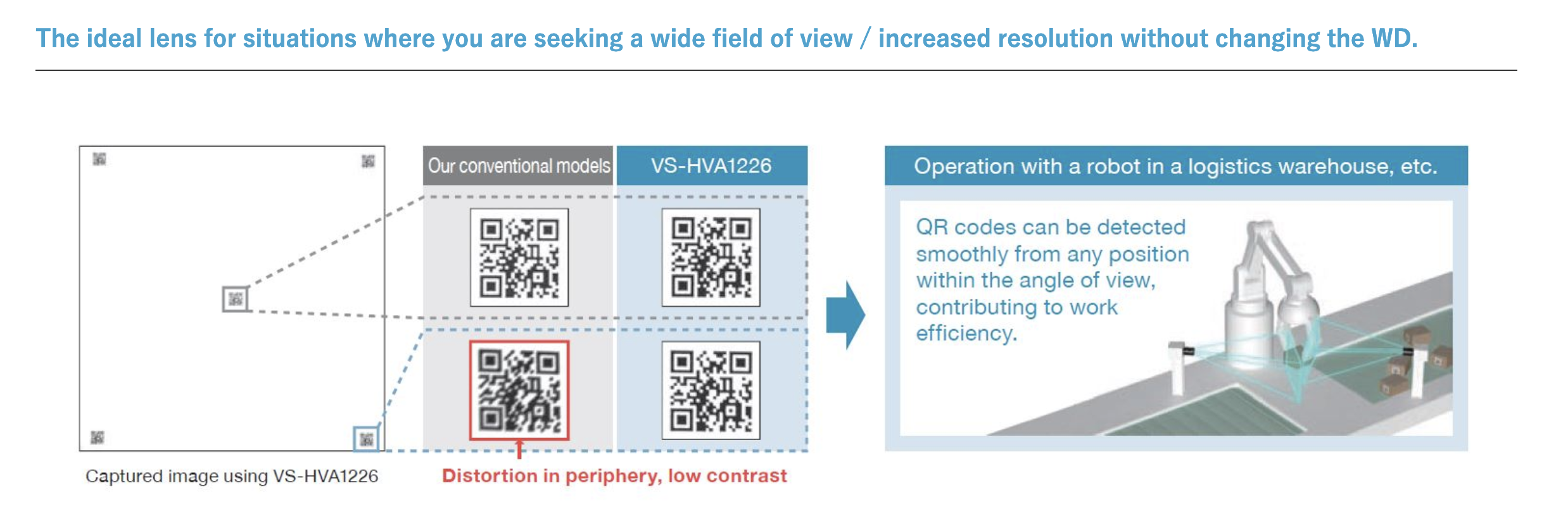

The VS-HVA Series lens revolutionizes imaging applications with its compact design and fixed focal length, meticulously crafted for 1.1-inch sensors featuring a 2.74μm pixel size. This lens ensures high resolution and precise imaging accuracy by minimizing distortion, particularly at the image periphery. Setting new standards, it outperforms conventional models with its remarkable compactness and lightweight construction. Tailored for scenarios prioritizing space and weight efficiency, the VS-HVA Series actively combines cutting-edge optics with a minimized physical footprint, making it the go-to choice for applications requiring both precision and portability.
| Series | Model Name | Fixed Focal length | Sensor Size | Working Distance | Lens Length | Diameter |
|---|---|---|---|---|---|---|
| VS-HVA Series | VS-HVA1226 | 12 | 1.1" | 100 | 51.2 | 37.5 |
| VS-HVA Series | VS-HVA1626 | 16 | 1.1" | 100 | 50.0 | 37.5 |
| VS-HVA Series | VS-HVA2524 | 25 | 1.1" | 100 | 45.0 | 37.5 |
| VS-HVA Series | VS-HVA3522 | 35 | 1.1" | 200 | 48.5 | 39.5 |
| VS-HVA Series | VS-HVA5024 | 50 | 1.1" | 200 | 57.5 | 40.0 |
| VS-HVA Series | VS-HVA0828 | 8 | 1.1" | 100 | 53.8 | 67.2 |
