VS-HVA3522

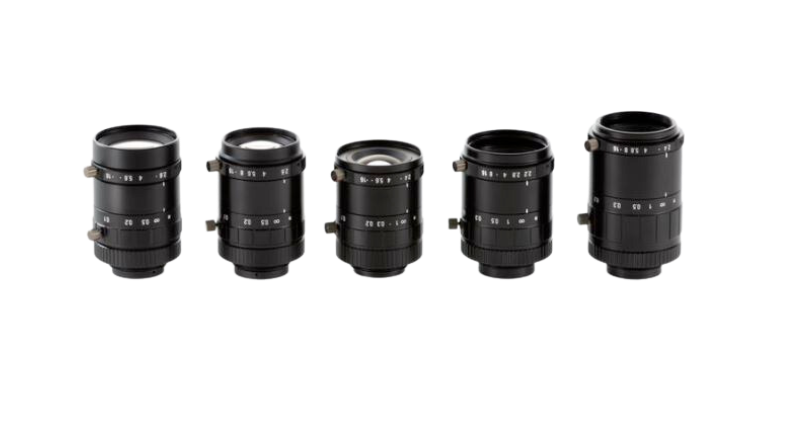

The VS-HVA3522, part of the VS-HVA Series, is a lens with specific specifications tailored for various imaging applications. It features a focal length of 35mm, a minimum object distance (M.O.D) of 200mm, and an adjustable aperture with an F-number ranging from F2.2 to Close. The lens has a diameter of 39.5mm and a length of 48.5mm, contributing to the compact design highlighted in the VS-HVA Series. With these specifications, the VS-HVA3522 is designed to provide versatility and precision in imaging, suitable for scenarios where a 35mm focal length and compact form factor are essential.
| Model Name | VS-HVA3522 |
|---|---|
| Focal Length (f) | 35mm |
| Maximum Aperture Ratio | 1： 2.2 |
| Aperture | F2.2 ~ Close |
| Angle of View (1.1") | 16.7° × 22.7 °(Diagonal：28.7°) |
| M.O.D | 200 mm |
| TV Distortion (1.1") | 0.03% |
| Operation | Manual （Lock screw M2） |
| Wavelength | Visible |
| Mount | C-Mount |
| Flange Back | 17.526mm |
| Sensor Size (max.) | 1.1" |
| Filter Thread | M=34 P= 0.5 |
| Weight （approx.） | 122g |
| Dimension | φ39.5(max) x L=48.5mm |
