VS-HVA5024
The VS-HVA5024, part of the VS-HVA Series, is a lens with specific specifications tailored for various imaging applications. It features a focal length of 50mm, a minimum object distance (M.O.D) of 200mm, and an adjustable aperture with an F-number ranging from F2.4 to Close. The lens has a diameter of 40mm and a length of 57.5mm, contributing to the compact design highlighted in the VS-HVA Series. With these specifications, the VS-HVA5024 is designed to provide versatility and precision in imaging, suitable for scenarios where a 50mm focal length and compact form factor are essential.
| Model Name | VS-HVA5024 |
|---|---|
| Focal Length (f) | 50mm |
| Maximum Aperture Ratio | 1： 2.4 |
| Aperture | F2.4 ~ Close |
| Angle of View (1.1") | 12.0° × 16.4 °(Diagonal：20.3°) |
| M.O.D | 200 mm |
| TV Distortion (1.1") | 0.03% |
| Operation | Manual （Lock screw M2） |
| Wavelength | Visible |
| Mount | CMount |
| Flange Back | 17.526mm |
| Sensor Size (max.) | 1.1" |
| Filter Thread | M=30.5 P= 0.5 |
| Weight （approx.） | 142g |

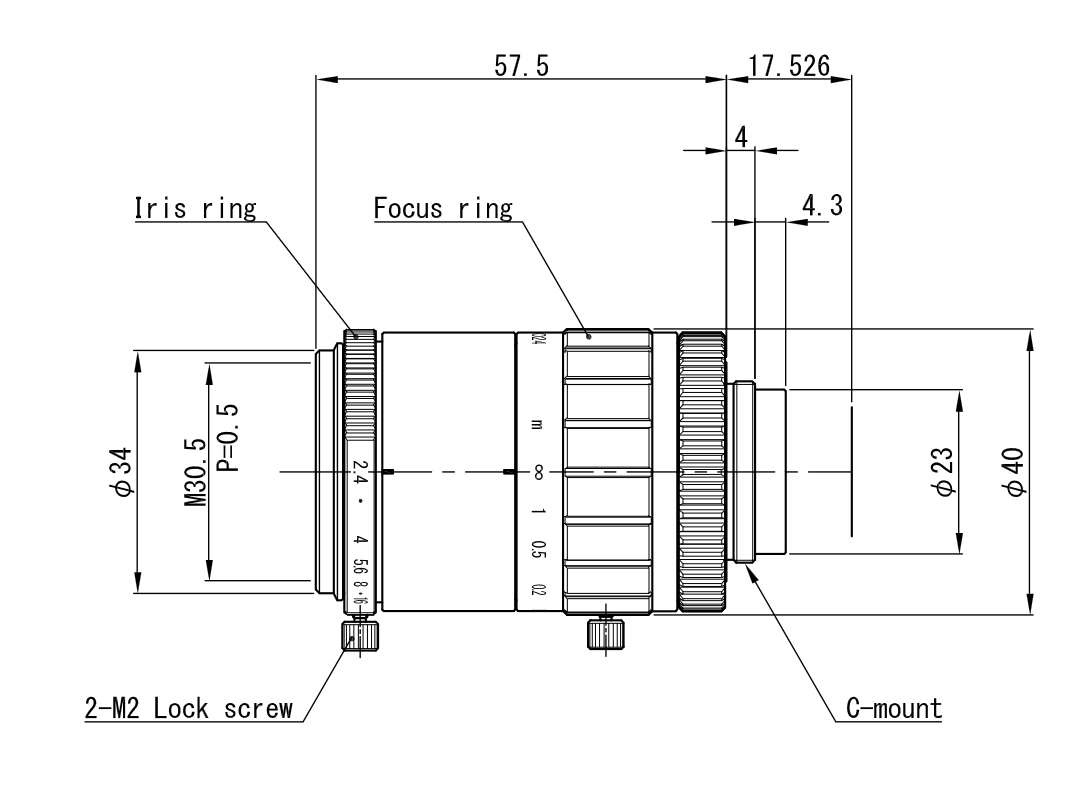

| Dimension | φ40(max) x L=57.5mm |
