VS-L12040-2.5/M67S
The VS-L(V) series is specially designed for large sensors up to 90mm in length with integrated vibration resistance. It also offers high resolution and high contrast for enhanced quality. Other than that, it has a large selection of various mount adapters. It is an exceptionally excellent choice for any line scan application.
Key Features:
- Up to 90mm sensors
- Up to 2K, 12K, & 16K
- Variable mounts
- Distortionless
| Model | VS-L12040-2.5/M67S |
|---|---|
| Focal length(f) | 120 mm |
| Optical Mag. | × 2.5 |
| WD | 115.5 mm |
| O/I (Object & Imager Distance) | 593.2 mm |
| Aperture | F4~ 22 |
| WorkingF/# *value at Iris open | 13.7 |
| N.A. | 0.091 |
| DOF | 0.2 mm |
| Optical Distortion | 0.04 % |
| Relative illuminance | 98 % |
| Operation | Manual (Lock Screw M2) |
| Wavelength | Visible |
| Mount | M 67 P= 0.75 |
| Flange Back | 360.7 mm |
| Image circle | φ 90 mm |
| Filter thread | M 52 P= 0.75 |
| Weight (approx.) | 670 g |

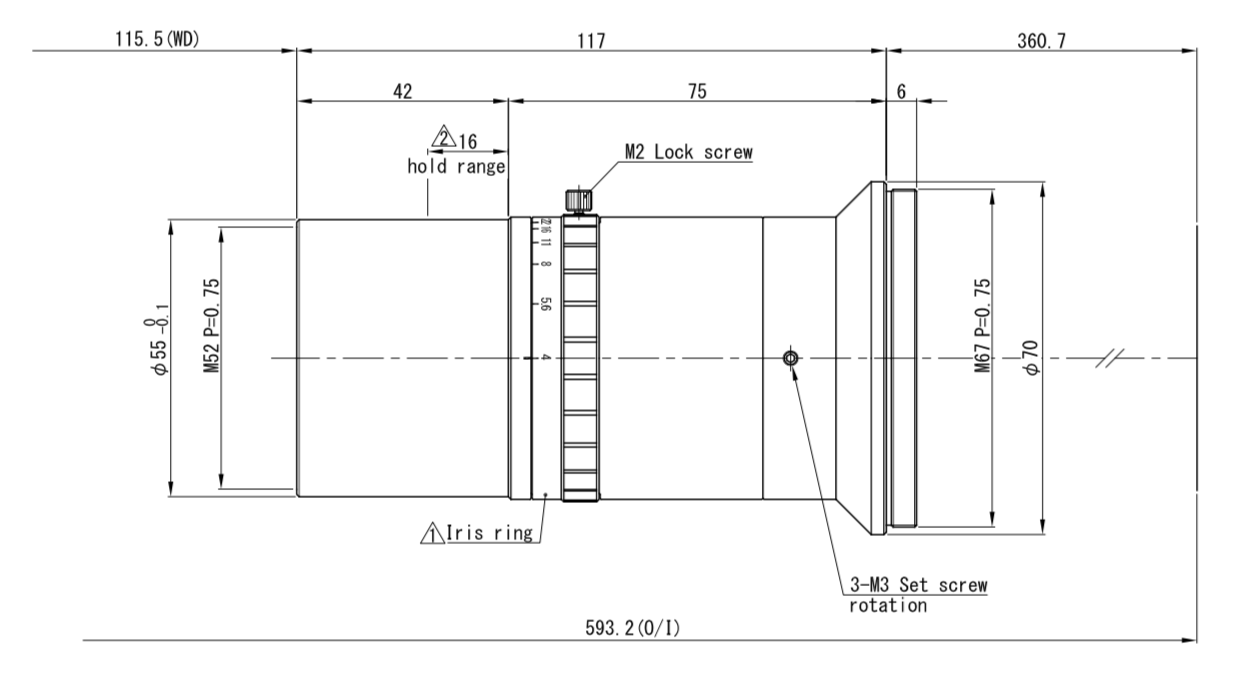

| Dimension | φ 70× L =117 mm |
