VS-L1828/F
The VS-L(F) series is designed with an F mount for line scan cameras. There is a large range of focal lengths and supported sensors which make it a good choice for any line scan application.
| Model | VS-L1828/F | |||
|---|---|---|---|---|
| Focal Length | 18mm | |||
| Optical Mag Range | (∞) x 0.025 ~ x 0.12 | |||
| Optical mag. | x 0.025 | x 0.05 | x 0.10 | x0.12 |
| WD | 722.9 mm | 352.8mm | 168.4mm | 137.9 mm |
| O/I (Object & Imager distance) | 826.9 mm | 456.8mm | 272.4mm | 241.9 mm |
| Aperture | F 2.8 ~ 16 | |||
| Working F/# | 2.9 | 3.0 | 3.1 | 3.2 |
| DOF at PCoC φ0.04mm | 371.2 mm | 96.0 mm | 24.8 mm | 17.8 mm |
| Optical Distortion (Y=14.5) | -2.14 % | |||
| Operation | Manual | |||
| Wavelength | Visible | |||
| Camera mount | F-Mount | |||
| Flange Back | 46.5 mm | |||
| Image Circle | φ29 mm | |||
| Filter Thread | M=55 P=0.75 | |||
| Weight (approx.) | 330 g | |||

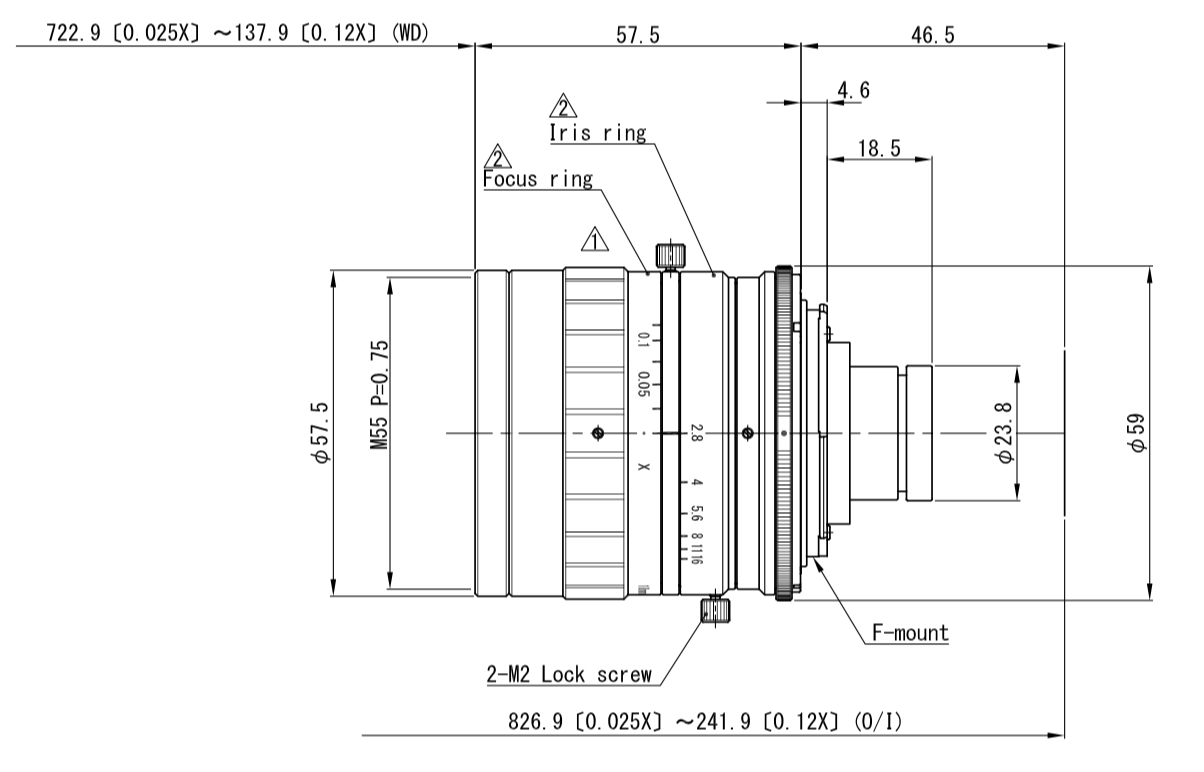

| Dimension | φ59 (max.) | × L= 57.5mm |
