VS-L2526/F
The VS-L(F) series is designed with an F mount for line scan cameras. There is a large range of focal lengths and supported sensors which make it a good choice for any line scan application.
| Model | VS-L2526/F | |||
|---|---|---|---|---|
| Focal Length | 25mm | |||
| Optical Mag Range | (∞) × 0.025 ~ × 0.12 | |||
| Optical mag. | x 0.025 | x 0.05 | x 0.10 | x0.12 |
| WD | 1010.8 mm | 496.6mm | 240.5mm | 198.1 mm |
| O/I (Object & Imager distance) | 1100.8 mm | 586.6mm | 330.5mm | 288.1 mm |
| Aperture | F 2.8 ~ 16 | |||
| Working F/# | 2.7 | 2.8 | 2.9 | 2.9 |
| DOF at PCoC φ0.04mm | 345.6 mm | 89.6mm | 23.2 mm | 16.1 mm |
| Optical Distortion (Y=14.5) | -1.64 % | |||
| Operation | Manual | |||
| Wavelength | Visible | |||
| Camera mount | F-Mount | |||
| Flange Back | 46.5 mm | |||
| Image Circle | φ29 mm | |||
| Filter Thread | M=55 P=0.75 | |||
| Weight (approx.) | 245 g | |||

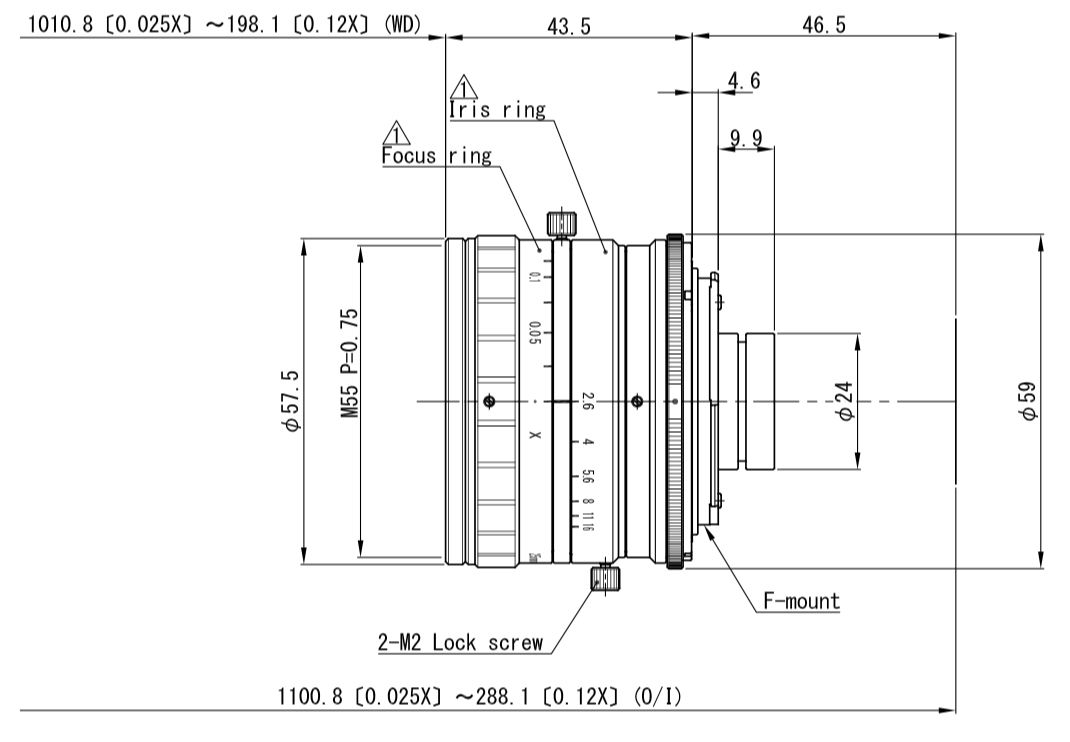

| Dimension | φ59 (max.) | × L= 43.5mm |
