VS-L3528/F

Line Scan Macro Lenses

VS-L3528/F

The VS-L(F) series is designed with an F mount for line scan cameras. There is a large range of focal lengths and supported sensors which make it a good choice for any line scan application.

ModelVS-L3528/F
Focal Length35mm
Optical Mag Range(∞) × 0.05 ~ × 0.3
Optical mag.x 0.05x 0.1x 0.2x0.3
WD706.9 mm346.8mm169.5mm 112.8 mm
O/I (Object & Imager distance)824.9 mm464.8mm287.5mm230.8 mm
ApertureF 2.8 ~ 16
Working F/#2.83.03.33.5
DOF at PCoC φ0.04mm345.6 mm89.6mm23.2 mm16.1 mm
Optical Distortion (Y=14.5)-0.43 %
OperationManual
WavelengthVisible
Camera mountF-Mount
Flange Back46.5 mm
Image Circleφ29 mm
Filter Thread M=62 P=0.75
Weight (approx.)350 g

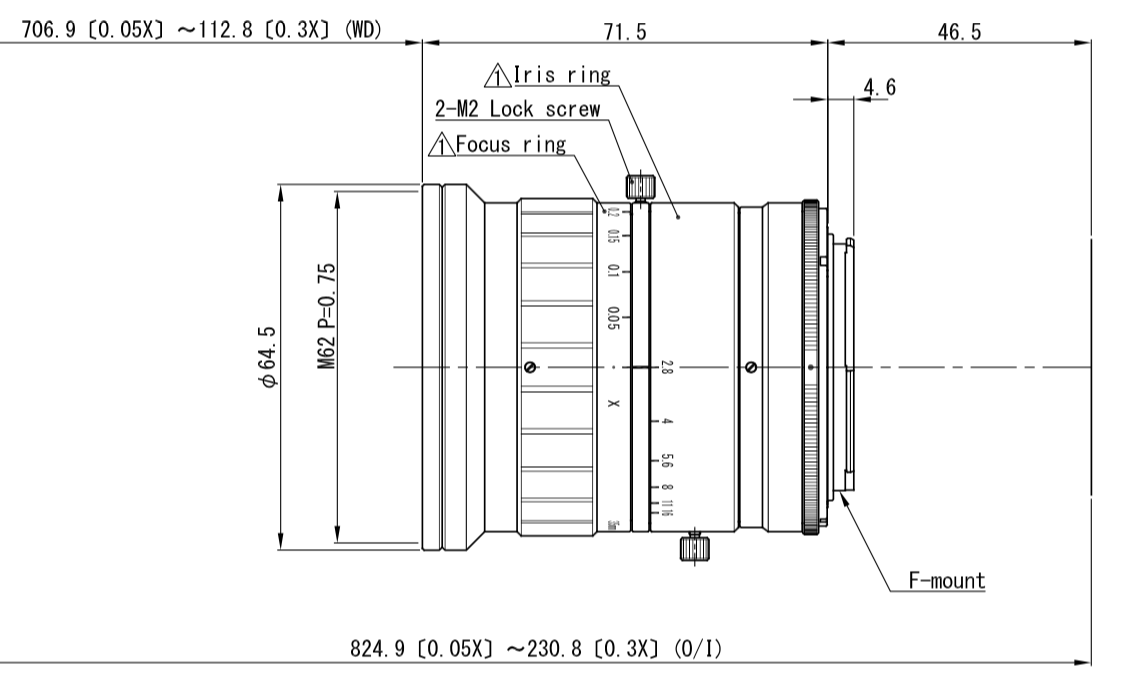

Dimensionφ64.5 (max.) × L= 31.5mm
