VS-L8528LM/M72
Supports 16K, 5μ Φ90 large line scan camera
Uniformity from the center to the edge of the lens
Bright Fno.3.5 applies for all models
Designed with RGB chromatic correction
V mount model
| Model | VS-L8528LM/M72 | |||
|---|---|---|---|---|
| Focal length(f) | 85mm (85.00) | |||
| Optical Mag.Range | ×0.05~×0.2 | |||
| Optical Mag. | ×0.05 | x0.1 | ×0.15 | ×0.25 |
| WD | 1724.0 mm | 898.0 mm | 619.0 mm | 462.0 mm |
| O/I (Object & Imager Distance) | 1854.0 mm | 1008.4mm | 729.4 mm | 592.0 mm |
| Aperture | 2.8~16 | |||
| WorkingF/# *value at Iris open | 2.9 | 3.1 | 3.2 | 3.4 |
| DOF at PCoC φ0.04mm | 92.8mm | 24.8mm | 11.4mm | 6.8 mm |
| Optical Distortion | 0.02 % | |||
| Operation | Manual (Lock screw M2) | |||
| Wavelength | Visible | |||
| Mount | M72 P=0.75 | |||
| Flange Back | 31.8 | |||
| Image circle | φ62 | |||
| Filter thread | M72 P=0.75 | |||
| Weight (approx.) | 540g | |||

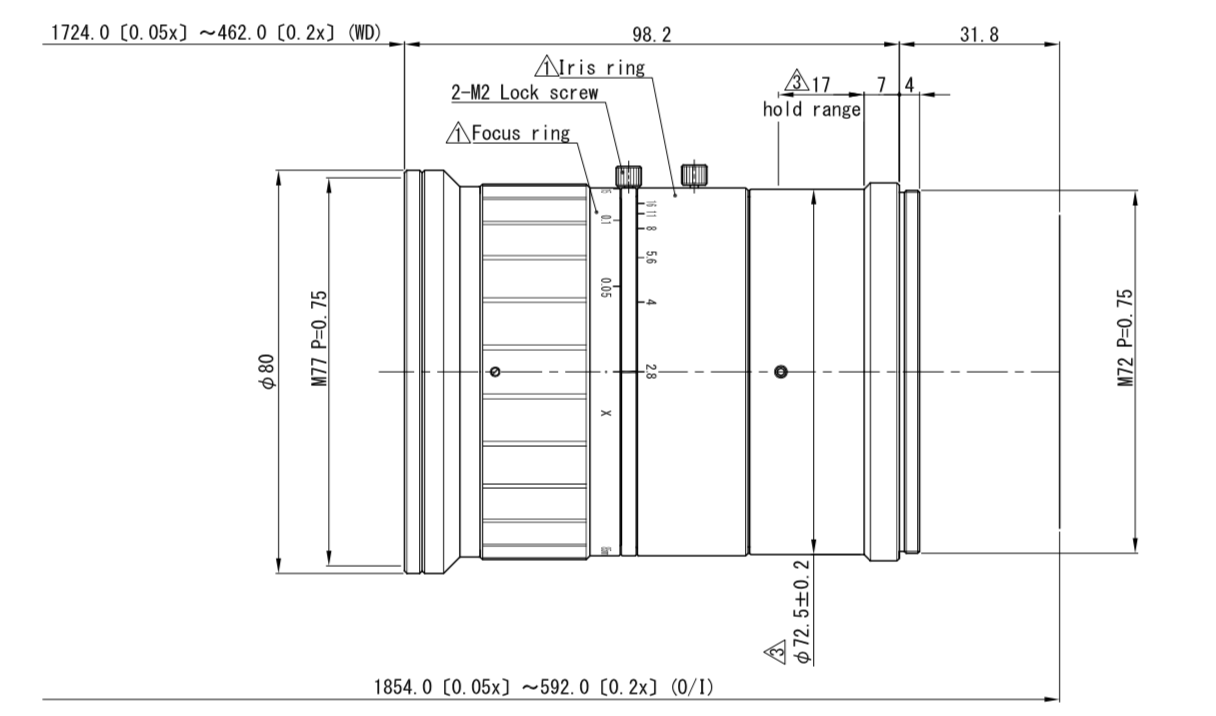

| Dimension | φ80(MAX) x L= 98.2mm |
