VS-MC12H1
It has 1″ support with f8mm- f50mm, 6 models. It has the changeable Iris plate system from Fno 1.4/5.6/8. The threaded iris plate system to lock the iris in place and avoid dust generation from vibration. Torque body for easy mounting control.
| Model | VS-MC12H1 |
|---|---|
| Focal Length (f) | 12 mm |
| Maximum Aperture atio | 1: 1.4 |
| Angle of View (1") | 50.8° × 50.8° (Diagonal:68.2°) |
| M.O.D | 300 mm |
| TV Distortion (1") | -0.32 % |
| Operation | Manual |
| Wavelength | Visible |
| Camera mount | C-mount |
| Flange Back | 17.526 mm |
| Sensor size (max.) | 1" |
| Filter Thread | M 35.5 P= 0.5 |
| Weight (approx.) | 106 g |

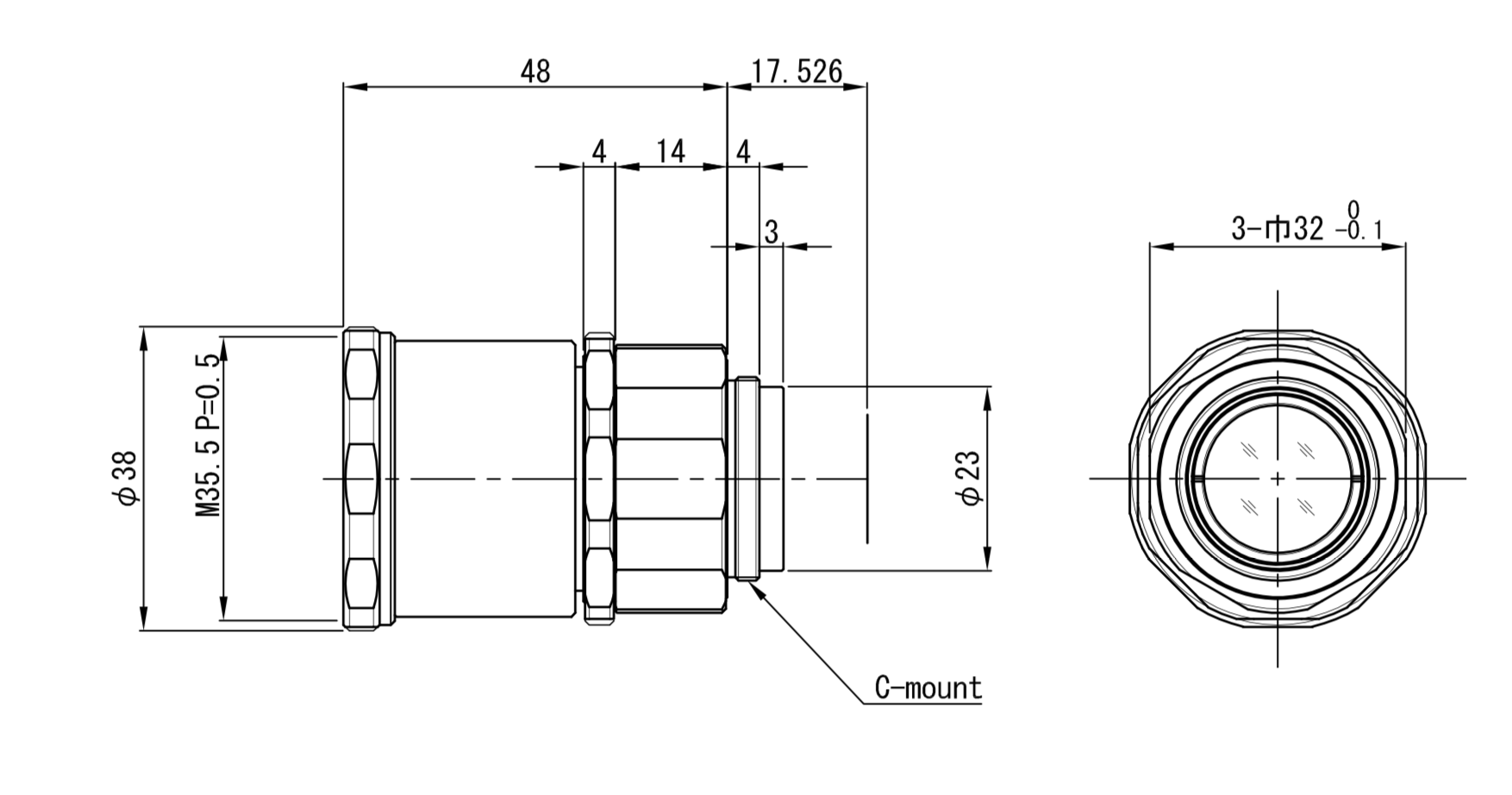

| Dimension | Φ 38 (MAX) ×L = 48 mm |
