VS-MCA25
The VS-MCA series is especially designed to stay in focus regardless of vibration or shock. With a fixed iris and a screw lock mechanism it is able to not only deliver a high quality image, but also maintain it though out the vision systems use.
| Model | VS-MCA25 | |||
|---|---|---|---|---|
| Focal Length | 25 mm | |||
| Maximum Aperture Ratio | 1: 2.0 | |||
| Optical mag. range | x 0.05 ~ × 0.5 | |||
| Optical mag. | x 0.05 | x 0.25 | x 0.5 | |
| 2/3" | 142.0 × 168.0 mm | 28.4 × 33.6 mm | 14.2 × 16.8 mm | |
| FOV (VxH mm) | 1/2" | 96.0 × 128.0 mm | 19.2 × 25.6 mm | 9.6 × 12.8 mm |
| 1/3" | 72.0 × 96.0 mm | 14.4 × 19.2 mm | 7.2 × 9.6 mm | |
| WD | 514.6mm | 106.6 mm | 55.6 mm | |
| O/I (Object & Imager distance) | 559.1 mm | 156.3 mm | 111.6 mm | |
| Aperture | 2 / 5.6 / 8 | 2 / 5.6 / 8 | 2 / 5.6 / 8 | |
| Working F/# *Value at Iris open | 2.1 / 5.9 / 8.4 | 2.5 / 7.0 / 10.0 | 3.0 / 8.4 / 12.0 | |
| TV distortion | 0.06 % | -0.06 % | -0.12 % | |
| Operation of Iris & Zoom | Manual | Manual | Manual | |
| Wavelength | Visible | Visible | Visible | |
| Camera mount | C-mount | |||
| Flange Back | 17.526 mm | |||
| Sensor size (max.) | 2/3" | |||
| Filter Thread | M 27 P= 0.5 | |||
| Weight (approx.) | 38g | |||

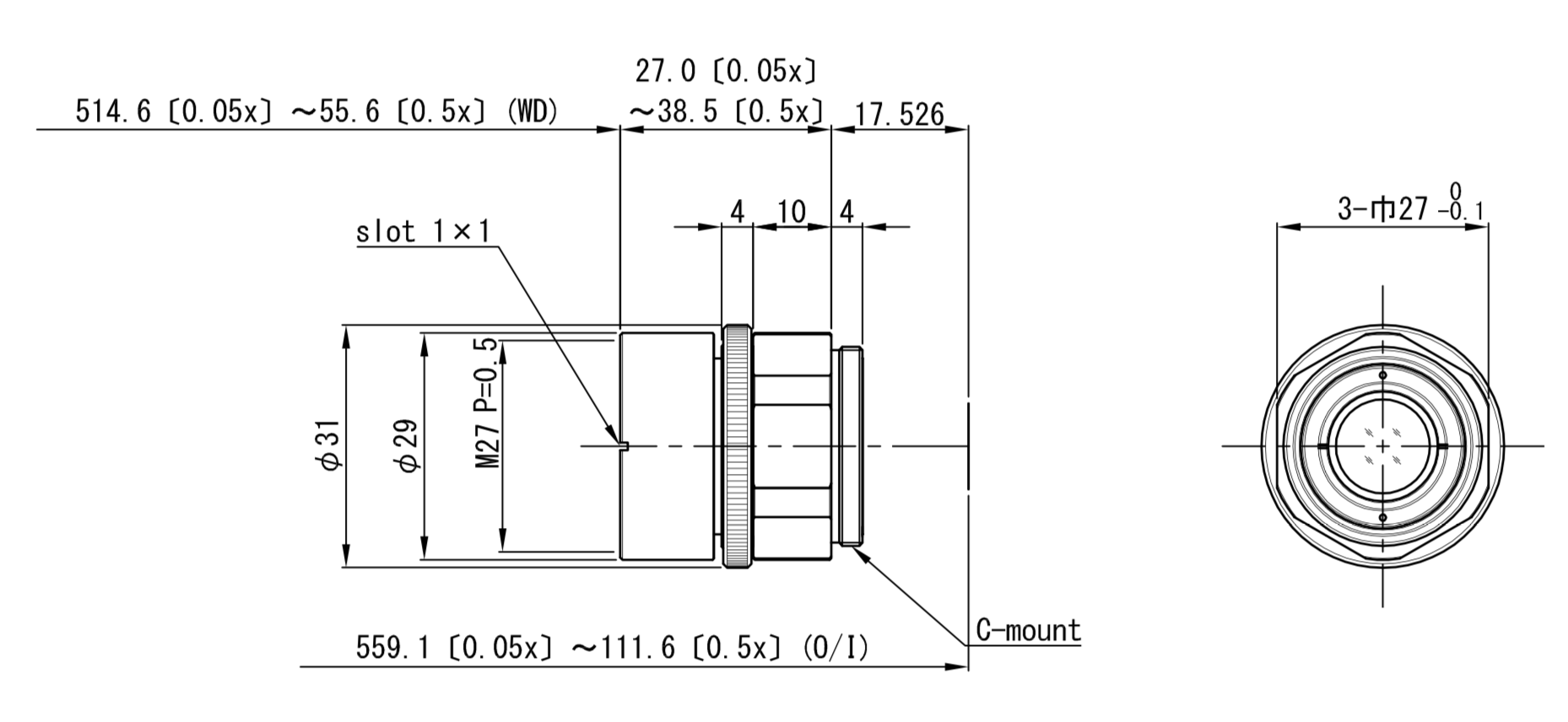

| Dimension | Φ 31 (MAX) × | L = 27 (X0.05) | ~ 38.5 (X0.5) mm |
