VS-MCA30
The VS-MCA series is especially designed to stay in focus regardless of vibration or shock. With a fixed iris and a screw lock mechanism it is able to not only deliver a high quality image, but also maintain it though out the vision systems use.
| Model | VS-MCA30 | |||
|---|---|---|---|---|
| Focal Length | 30 mm | |||
| Maximum Aperture Ratio | 1: 2.0 | |||
| Optical mag. range | x 0.06 ~ × 0.45 | |||
| Optical mag. | x 0.06 | x 0.25 | x 0.45 | |
| 2/3" | 118.3 × 140.0 mm | 28.4 × 33.6 mm | 15.8 × 18.7 mm | |
| FOV (VxH mm) | 1/2" | 80.0 × 106.7 mm | 19.2 × 25.6 mm | 10.7 × 14.2 mm |
| 1/3" | 60.0 × 80.0 m | 14.4 × 19.2 mm | 8.0 × 10.7 mm | |
| WD | 513.5 mm | 133.5 mm | 80.1mm | |
| O/I (Object & Imager distance) | 555.5 mm | 181.2 mm | 133.8 mm | |
| Aperture | 2 / 5.6 / 8 | 2 / 5.6 / 8 | 2 / 5.6 / 8 | |
| Working F/# *Value at Iris open | 2.4 / 5.9 / 8.5 | 2.9 / 7.0 / 10.0 | 3.3 / 8.1 / 11.6 | |
| TV distortion | 0.11% | -0.07% | -0.09 % | |
| Operation of Iris & Zoom | Manual | Manual | Manual | |
| Wavelength | Visible | Visible | Visible | |
| Camera mount | C-mount | |||
| Flange Back | 17.526 mm | |||
| Sensor size (max.) | 2/3" | |||
| Filter Thread | M 27 P= 0.5 | |||
| Weight (approx.) | 39 g | |||

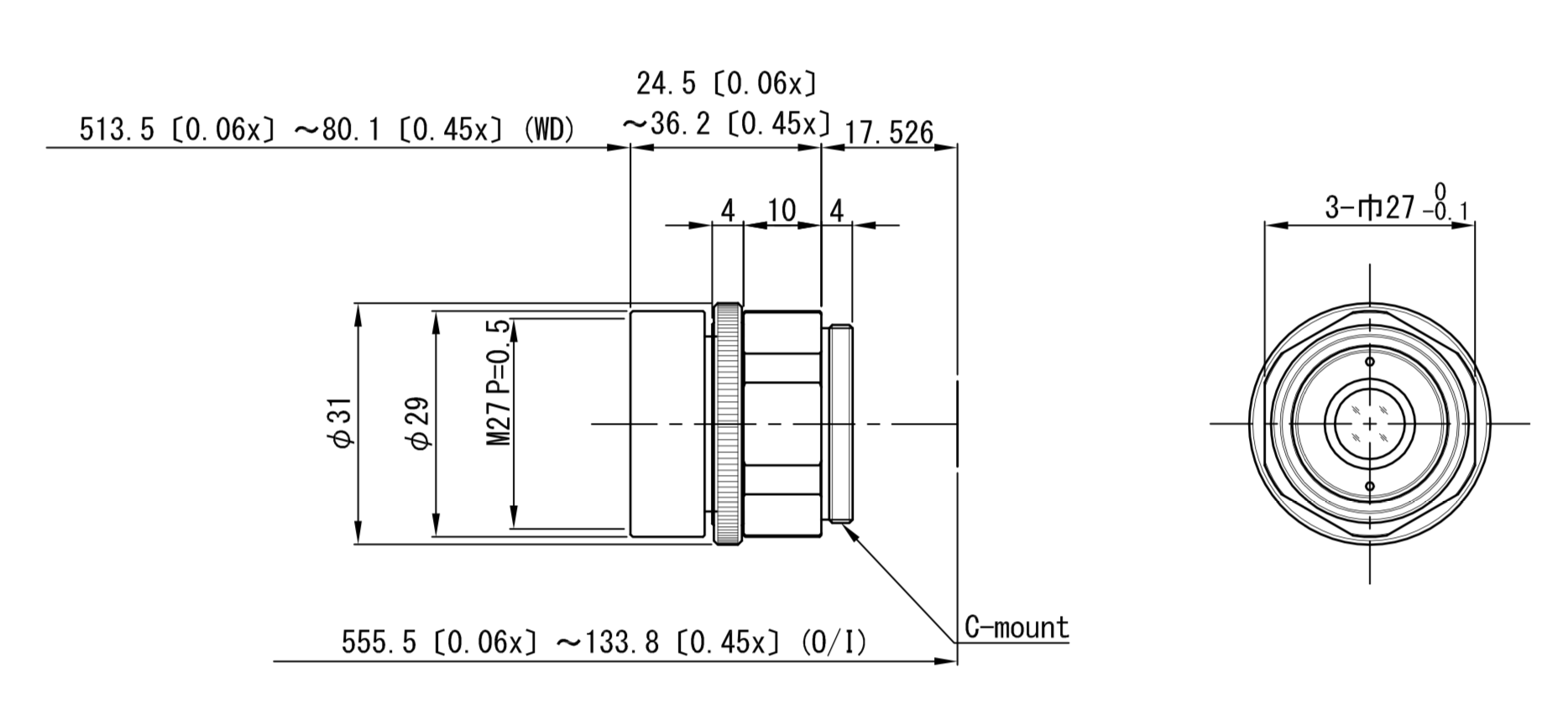

| Dimension | Φ 31 (MAX) × | L = 24.5 (X0.06) | ~ 36.2 (X0.45) mm |
