VS-MCA35
The VS-MCA series is especially designed to stay in focus regardless of vibration or shock. With a fixed iris and a screw lock mechanism it is able to not only deliver a high quality image, but also maintain it though out the vision systems use.
| Model | VS-MCA35 | |||
|---|---|---|---|---|
| Focal Length | 35 mm | |||
| Maximum Aperture Ratio | 1: 1.9 | |||
| Optical mag. range | x 0.26 ~ × 0.65 | |||
| Optical mag. | x 0.26 | x 0.45 | x 0.65 | |
| 2/3" | 27.3 × 32.3 mm | 15.8 × 18.7 mm | 10.9 × 12.9 mm | |
| FOV (VxH mm) | 1/2" | 18.5 × 24.6 mm | 10.7 × 14.2 mm | 7.4 × 9.9 mm |
| 1/3" | 13.9 × 18.5 mm | 8.0 × 10.7 mm | 5.5 × 7.4 mm | |
| WD | 163.9 mm | 107.0 mm | 83.1mm | |
| O/I (Object & Imager distance) | 213.4 mm | 163.2 mm | 146.3 mm | |
| Aperture | 1.9 / 5.6 / 8 | 1.9 / 5.6 / 8 | 1.9 / 5.6 / 8 | |
| Working F/# *Value at Iris open | 2.5 / 7.1 / 10.1 | 3.0 / 8.0 / 11.6 | 3.5 / 9.2 / 13.2 | |
| TV distortion | 0.03% | 0.0% | 0.01 % | |
| Operation of Iris & Zoom | Manual | Manual | Manual | |
| Wavelength | Visible | Visible | Visible | |
| Camera mount | C-mount | |||
| Flange Back | 17.526 mm | |||
| Sensor size (max.) | 2/3" | |||
| Filter Thread | M 27 P= 0.5 | |||
| Weight (approx.) | 43 g | |||

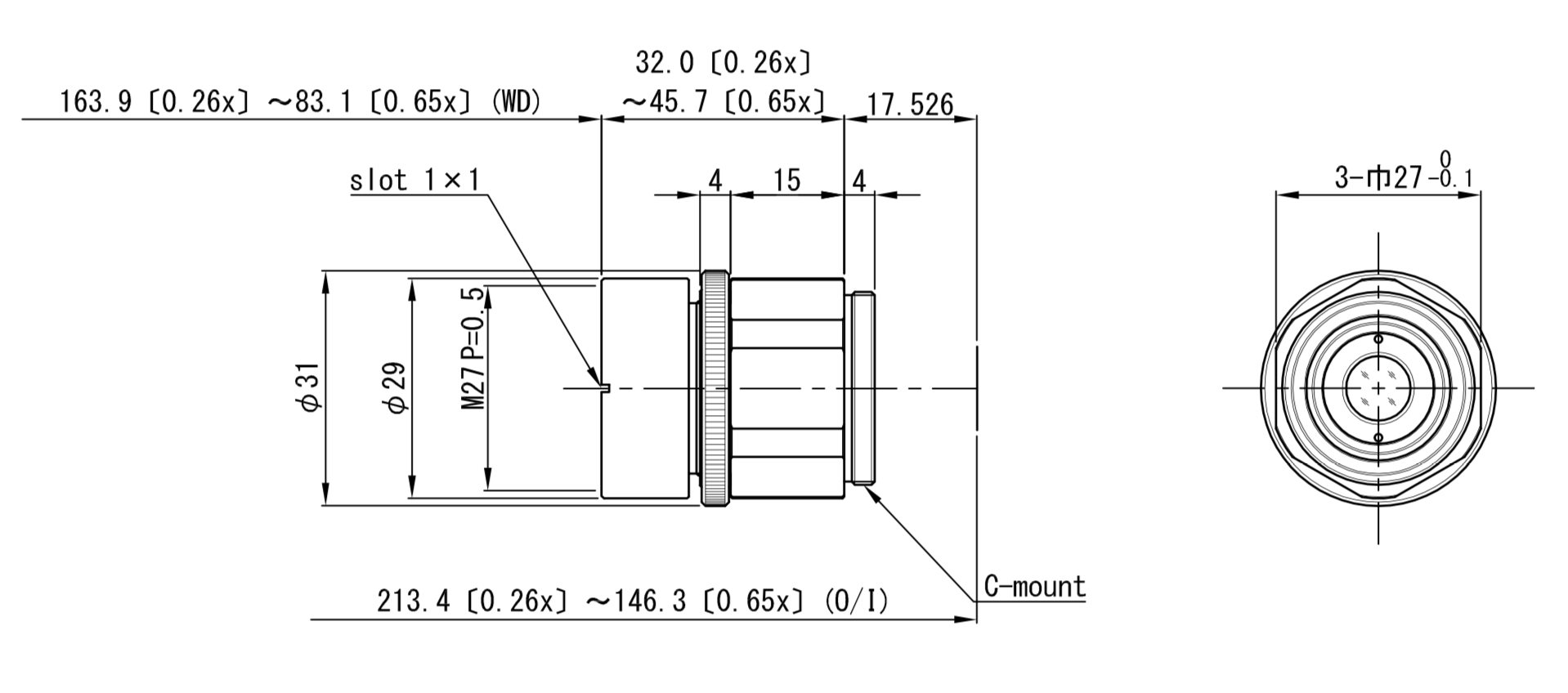

| Dimension | Φ 31 (MAX) × | L = 32 (X0.26) | ~ 45.7 (X0.65) mm |
