VS-MCA50
The VS-MCA series is especially designed to stay in focus regardless of vibration or shock. With a fixed iris and a screw lock mechanism it is able to not only deliver a high quality image, but also maintain it though out the vision systems use.
| Model | VS-MCA50 | |||
|---|---|---|---|---|
| Focal Length | 50 mm | |||
| Maximum Aperture Ratio | 1: 2.5 | |||
| Optical mag. range | x 0.08 ~ × 0.48 | |||
| Optical mag. | x 0.08 | x 0.3 | x 0.48 | |
| 2/3" | 88.8 × 105.0 mm | 23.7 x 28.0mm | 14.8 × 17.5 mm | |
| FOV (VxH mm) | 1/2" | 60.0 × 80.0 mm | 16.0 x 21.3 mm | 10.0 x 13.3 mm |
| 1/3" | 45.0 x 60.0 mm | 12.0 × 16.0 mm | 7.5 × 10.0 mm | |
| WD | 633.6 mm | 189.3 mm | 128.7mm | |
| O/I (Object & Imager distance) | 695.1 mm | 261.5 mm | 209.6 mm | |
| Aperture | 2.5 / 5.6 / 8 | 2.5 / 5.6 / 8 | 2.5 / 5.6 / 8 | |
| Working F/# *Value at Iris open | 2.6 / 6.0 / 8.6 | 3.2 / 7.3 / 10.4 | 3.6 / 8.3 / 11.8 | |
| TV distortion | 0.04% | -0.01% | -0.01 % | |
| Operation of Iris & Zoom | Manual | Manual | Manual | |
| Wavelength | Visible | Visible | Visible | |
| Camera mount | C-mount | |||
| Flange Back | 17.526 mm | |||
| Sensor size (max.) | 2/3" | |||
| Filter Thread | M 27 P= 0.5 | |||
| Weight (approx.) | 60 g | |||

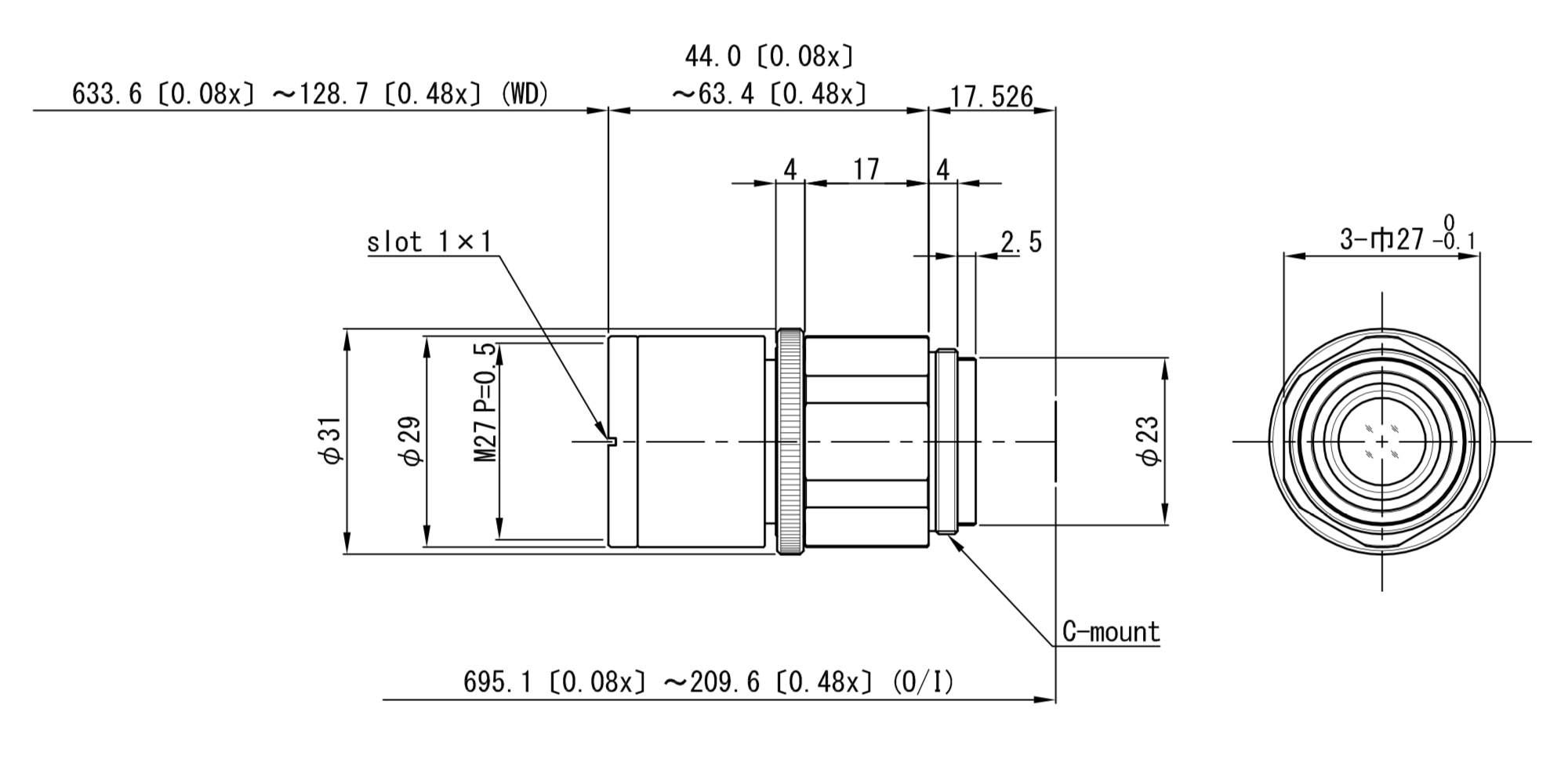

| Dimension | Φ 31 (MAX) × | L = 45 (X0.08) | ~ 63.4 (X0.48) mm |
