VS-MCA6.5
The VS-MCA series is especially designed to stay in focus regardless of vibration or shock. With a fixed iris and a screw lock mechanism it is able to not only deliver a high quality image, but also maintain it though out the vision systems use.
| Model | VS-MCA6.5 | |||
|---|---|---|---|---|
| Focal Length | 6.5 mm | |||
| Maximum Aperture Ratio | 1: 2.2 | |||
| Optical mag. range | x 0.01 ~ × 0.06 | |||
| Optical mag. | x 0.01 | x 0.03 | x 0.06 | |
| 2/3" | - | - | - | |
| FOV (VxH mm) | 1/2" | 480.0 × 640.0 mm | 160.0 × 213.3 m | 80.0 × 106.7 mm |
| 1/3" | 360.0 × 480.0 mm | 120.0 × 160.0 mm | 60.0 × 80.0 mm | |
| WD | 656.0mm | 209.6mm | 98.0 mm | |
| O/I (Object & Imager distance) | 696.6 mm | 250.3 mm | 138.9 mm | |
| Aperture | 2.2 / 5.6 / 8 | 2 / 5.6 / 8 | 2 / 5.6 / 8 | |
| Working F/# *Value at Iris open | 2.3 / 5.7 / 8.1 | 2.3 / 5.8 /8.2 | 2.3 / 5.9 / 8.5 | |
| TV distortion | 0.16 % | 0.02 % | -0.18 % | |
| Operation of Iris & Zoom | Manual (Lock crew M2) | Manual (Lock crew M2) | Manual (Lock crew M2) | |
| Wavelength | Visible | Visible | Visible | |
| Camera mount | C-mount | |||
| Flange Back | 17.526 mm | |||
| Sensor size (max.) | 1/2" | |||
| Filter Thread | M 27 P= 0.5 | |||
| Weight (approx.) | 36 g | |||

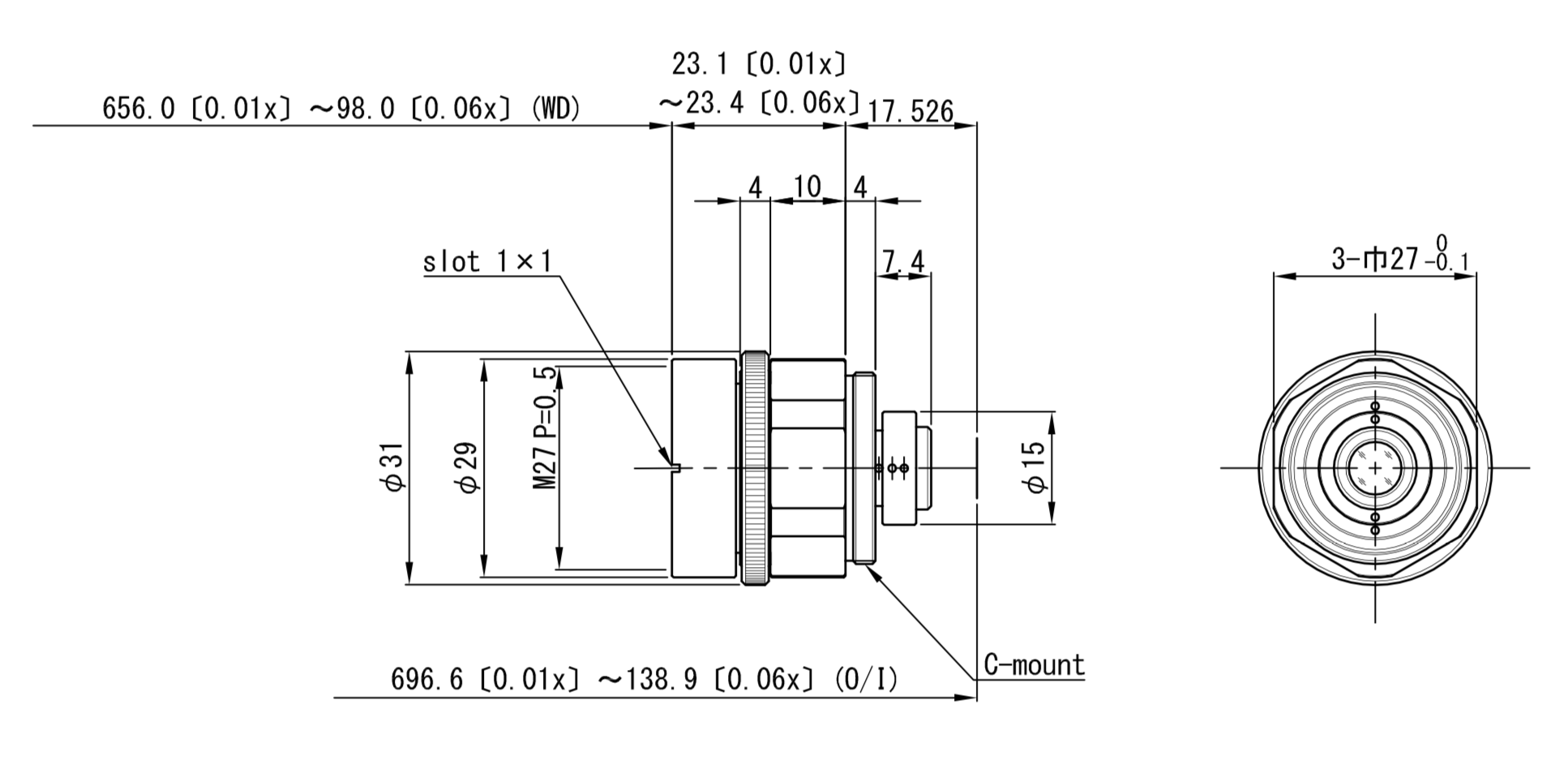

| Dimension | Φ 31 (MAX) × | L = 23.1 (X0.01) | ~ 23.4 (X0.06) mm |
