VS-MCA75
The VS-MCA series is especially designed to stay in focus regardless of vibration or shock. With a fixed iris and a screw lock mechanism it is able to not only deliver a high quality image, but also maintain it though out the vision systems use.
| Model | VS-MCA75 | |||
|---|---|---|---|---|
| Focal Length | 75 mm | |||
| Maximum Aperture Ratio | 1: 3.8 | |||
| Optical mag. range | x 0.14 ~ × 0.62 | |||
| Optical mag. | x 0.14 | x 0.4 | x 0.62 | |
| 2/3" | 50.7 × 60.0 mm | 17.8 x 21.0 mm | 11.5 x 13.6 mm | |
| FOV (VxH mm) | 1/2" | 34.3 × 45.7 mm | 12.0 x 16.0 mm | 7.7 × 10.3 mm |
| 1/3" | 25.7 × 34.3 mm | 9.0 × 12.0 mm | 5.8 × 7.7 mm | |
| WD | 562.9mm | 219.5 mm | 153.8 mm | |
| O/I (Object & Imager distance) | 650.4 mm | 326.2 mm | 276.8 mm | |
| Aperture | 3.8 / 5.6 / 8 | 3.8 / 5.6 / 8 | 3.8 / 5.6 / 8 | |
| Working F/# *Value at Iris open | 4.1 / 7.0 / 10.1 | 4.8 / 9.7 / 13.9 | 6.2 / 12.0 / 17.2 | |
| TV distortion | 0.03 % | -0.01 % | -0.02 % | |
| Operation of Iris & Zoom | Manual | Manual | Manual | |
| Wavelength | Visible | Visible | Visible | |
| Camera mount | C-mount | |||
| Flange Back | 17.526 mm | |||
| Sensor size (max.) | 2/3" | |||
| Filter Thread | M 27 P= 0.5 | |||
| Weight (approx.) | 80 g | |||

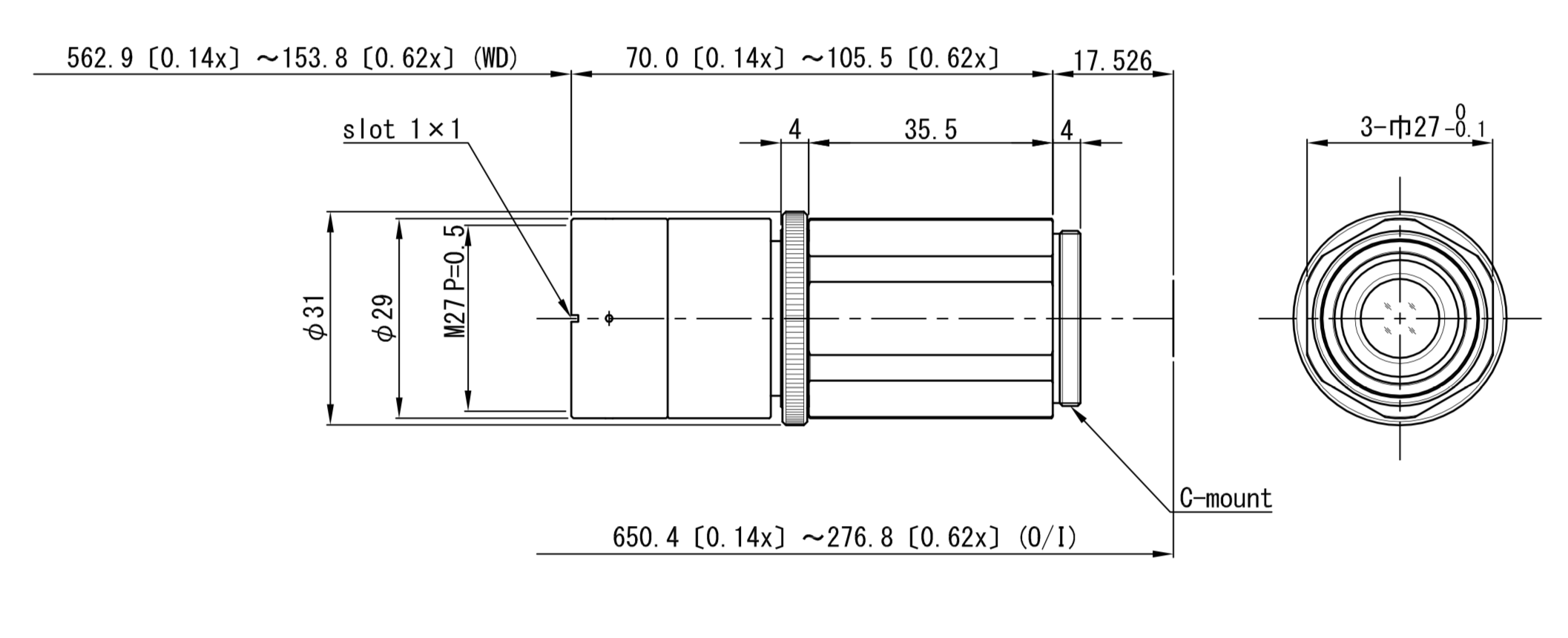

| Dimension | Φ 31 (MAX) × | L = 70 (X0.14) | ~ 105.5 (X0.62) mm |
