VS-THV05-80/S
Optimized for 12MP 1.1" 3.45um Cameras "Equal O/I Optical Design"
Main > Product > Machine Vision Lenses > Telecentric Lens > VS-THV(1.1) Series > VS-THV05-80/S
VS-THV05-80/S
VS-THV(1.1) Series has optimized for 12MP 1.1″ 3.45um cameras with equal O/I optical design across all models. It has different magnification options from 0.5x/ 0.8x/ 1.0x/ 1.5x/ 2.0x/ 3.0x/ 4.0x. It also has built-in coaxial illumination and a manual iris to adjust the depth of field (DOF). This lens is available at C-Mount.
| Model Name | VS-THV05-80/S | |
|---|---|---|
| Optical Mag. | × 0.5 ± 5 % | |
| FOV (V x H) | 1.1" | 20.6 × 28.2 mm |
| 1" | 22.5 × 22.5 mm | |
| 2/3" | 14.2 × 16.8 mm | |
| WD | 82.0 mm ±2.5 | |
| O/I (Object & Imager Distance) | 300.0 mm | |
| Working F/# *Value at Iris Open | 7.5 | |
| NA | 0.033 | |
| DOF at PCoC φ0.04mm | 2.4 mm | |
| TV Distortion (1.1") | 0.01 % | |
| Relative Illuminance (Y=8.8) | 98 % | |
| Wavelength | Visible | |
| Mount | C-Mount | |
| Flange Back | 17.526 mm | |
| Sensor Size (max.) | 1.1" | |
| Co-Axial Prism | - | |
| Filter Thread | M 52 P= 0.75 | |
| Weight (approx.) | 370g | |

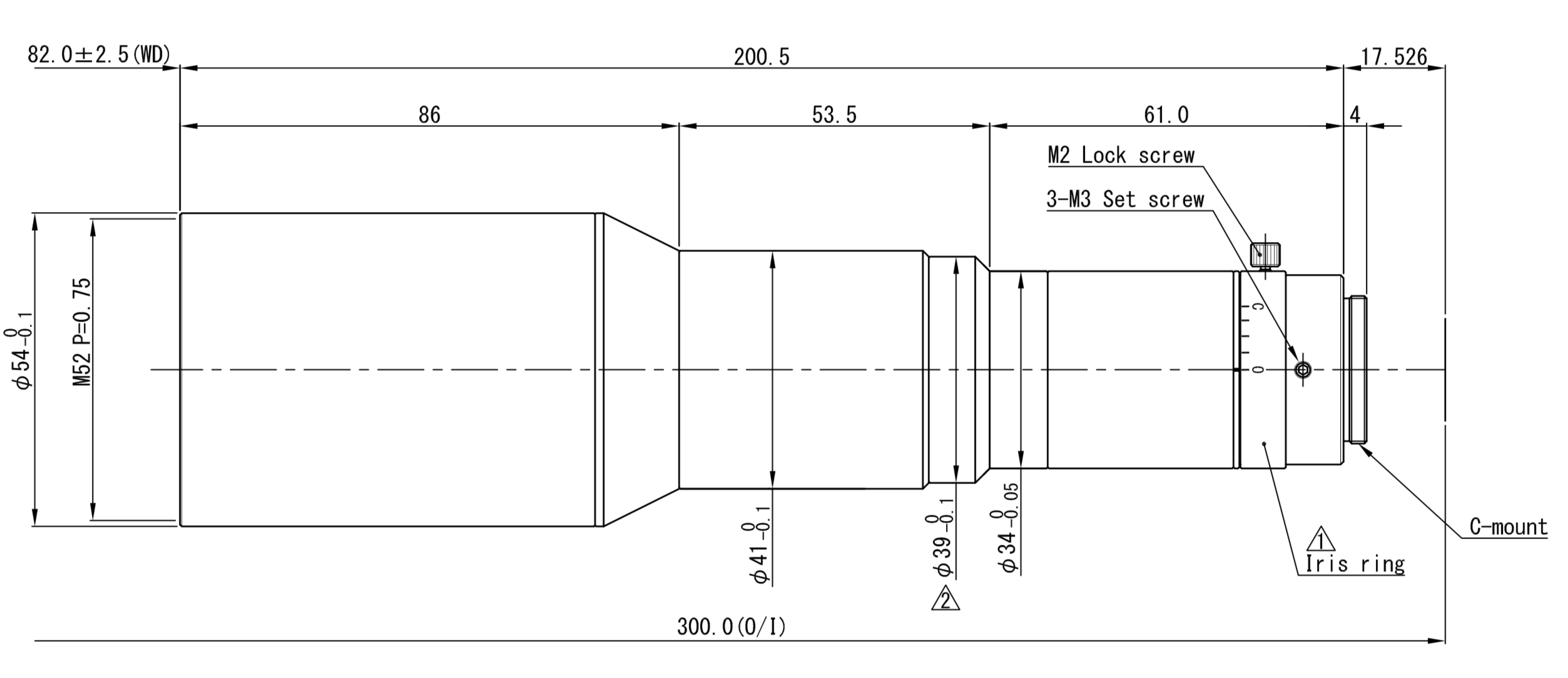

| Dimension | φ 54 (max.) × L= 200.5 mm | |
