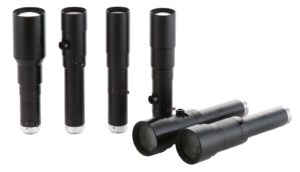

VS-THV(1.1) Series

High Resolution Telecentric Lens for 1.1″ Format (3.45um)
Equal Object to Image Distance (O/I) Across All Mag. Models

VS-THV(WD:150mm) series
4 Mag. Options: 0.5x/0.8x/1.0x/2.0x

Features

・ Optimized for 1.1″ 3.45um Cameras
・ Equal Object to Image Distance (O/I) Across All Models ・ 0.5x/0.8x/1.0x/2.0x Magnification Options
・ Built-In Coaxial Illumination Available
・ Manual Iris to Adjust Depth of Field (DOF)

Equal Object to Image Distance (O/I) Optical Design

ModelMagnificationWorking Distance (mm)Object/imager DistanceDimensionSensor size Supported
VS-THV05-150/S0.5x152400mmφ58 x L=230.5mm1.1(" φ17.6)
VS-THV05-150CO/S0.5x152400mmφ58 x L=230.5mm1.1(" φ17.6)
VS-THV08-150/S0.8x150400mmφ52 x L=232.5mm1.1(" φ17.6)
VS-THV08-150CO/S0.8x150400mmφ52 x L=232.5mm1.1(" φ17.6)
VS-THV1-150/S1.0x150400mmφ52 x L=232.5mm1.1(" φ17.6)
VS-THV1-150CO/S1.0x150400mmφ52 x L=232.5mm1.1(" φ17.6)
VS-THV2-150/S2.0x152400mmφ55 x L=230.5mm1.1(" φ17.6)
VS-THV2-150CO/S2.0x152400mmφ55 x L=230.5mm1.1(" φ17.6)
VS-THV05-80/S0.5x82300mmφ54 × L = 200.5 mm1.1(" φ17.6)
VS-THV05-80CO/S0.5x82300mmφ54 × L = 200.5 mm1.1(" φ17.6)
VS-THV08-80/S0.8x82300mmφ43 × L = 200.5 mm1.1(" φ17.6)
VS-THV08-80CO/S0.8x82300mmφ43 × L = 200.5 mm1.1(" φ17.6)
VS-THV1-80/S1.0x80300mmφ40 × L= 202.5 mm1.1(" φ17.6)
VS-THV1-80CO/S1.0x80300mmφ40 × L= 202.5 mm1.1(" φ17.6)
VS-THV1.5-80/S1.5×80300mmφ40 × L= 202.5 mm1.1(" φ17.6)
VS-THV1.5-80CO/S1.5×80300mmφ40 × L= 202.5 mm1.1(" φ17.6)
VS-THV2-80/S2.0x80300mmφ43 × L= 202.5 mm1.1(" φ17.6)
VS-THV2-80CO/S2.0x80300mmφ43 × L= 202.5 mm1.1(" φ17.6)
VS-THV3-80/S3.0×81.5300mmφ43 × L= 201mm1.1(" φ17.6)
VS-THV3-80CO/S3.0×81.5300mmφ43 × L= 201mm1.1(" φ17.6)
