VS-THV2-80CO/S
Optimized for 12MP 1.1" 3.45um Cameras "Equal O/I Optical Design"
Main > Product > Machine Vision Lenses > Telecentric Lens > VS-THV(1.1) Series > VS-THV2-80CO/S
VS-THV2-80CO/S
VS-THV(1.1) Series has optimized for 12MP 1.1″ 3.45um cameras with equal O/I optical design across all models. It has different magnification options from 0.5x/ 0.8x/ 1.0x/ 1.5x/ 2.0x/ 3.0x/ 4.0x. It also has built-in coaxial illumination and a manual iris to adjust the depth of field (DOF). This lens is available at C-Mount.
| Model Name | VS-THV2-80CO/S | |
|---|---|---|
| Optical Mag. | × 2.0 ± 5 % | |
| FOV (V x H) | 1.1" | 5.2 x 7.1mm |
| 1" | 5.6 x 5.6mm | |
| 2/3" | 3.6 x 4.2mm | |
| WD | 80.0 mm ±2.4 | |
| O/I (Object & Imager Distance) | 300.0 mm | |
| Working F/# *Value at Iris Open | 7.5 | |
| NA | 0.133 | |
| DOF at PCoC φ0.04mm | 0.2 mm | |
| TV Distortion (1.1") | 0.04 % | |
| Relative Illuminance (Y=8.8) | 100 % | |
| Wavelength | Visible | |
| Mount | C-Mount | |
| Flange Back | 17.526 mm | |
| Sensor Size (max.) | 1.1" | |
| Co-Axial Prism | Built-in | |
| Filter Thread | M 40.5 P= 0.5 | |
| Weight (approx.) | 380 g | |

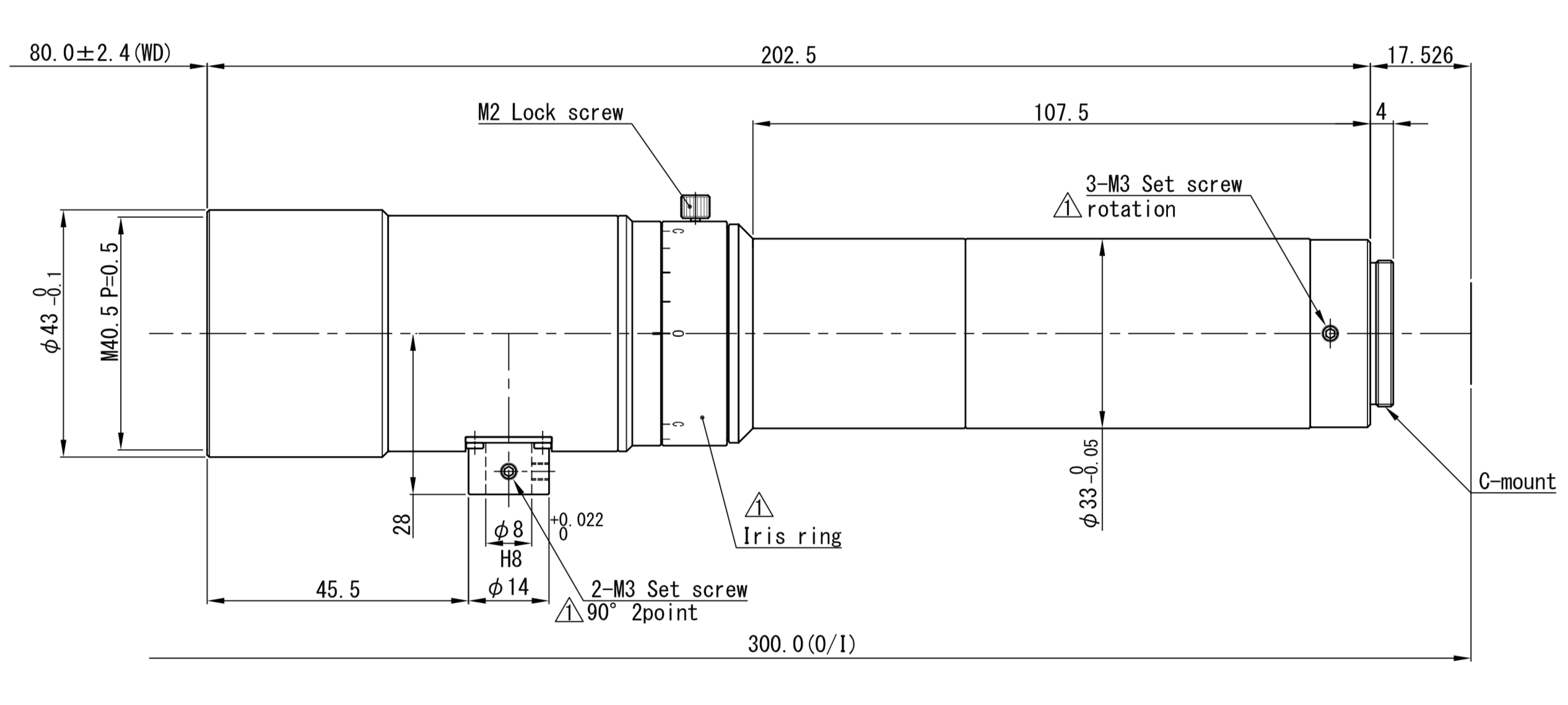

| Dimension | φ 43 (max.) × L= 202.5 mm | |
