JAI GOX-16205C-PGE
The GOX-16205C-PGE is a small, attractively-priced industrial area scan camera offering a blend of features, image quality, and industrial grade reliability perfect for the next generation of machine vision systems. The camera features a state-of-the-art Sony Pregius S sensor with backside illumination (BSI) technology, and a GigE Vision 2.0 interface providing 16.2-megapixel color images at up to 7 fps.. Higher frame rates are possible using JAI’s “Xpress” lossless compression function.
| Model | GOX-16205C-PGE |
|---|---|
| Type | Area Scan |
| Color/Mono | Color |
| Light Spectrum | Visible |
| Resolution | 16.2 MP |
| Resolution WxH | 5328 x 3040 px |
| Frame rate / Line rate | 7 fps |
| ROI | Yes |
| Interface | GigE Vision 1-Cable (PoE) |
| Sensors | 1XCMOS |
| Sensor Name | IMX542 |
| Optical Format | 1.1 inch |
| Cell Size WxH | 2.74 x 2.74 µm |
| Shutter type | Global shutter |
| Sensor Diagonal | 16.8 mm |
| Active Sensor Dimensions WxH | 14.6 x 8.3 mm |

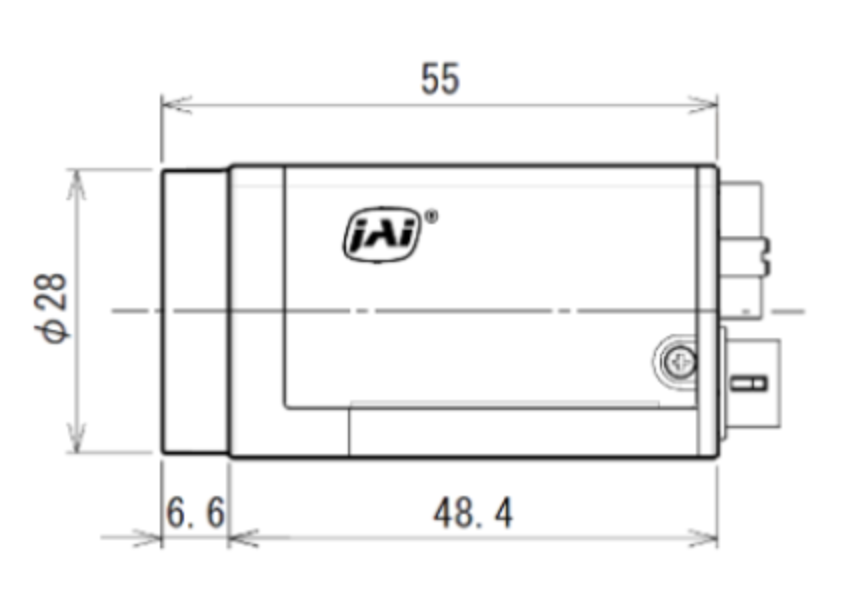

| Camera Dimensions HxWxL | 29 x 29 x 55 mm |
| Weight | 65 g |
| Video Output | 8/10/12-bit * |
| Lens Mount | C-mount |
| Power Consumption | 4.1 Watt |
| Operating Temperature (ambient) | -5°C to +45°C |
