JAI GOX-5105M-PGE
The GOX-5105M-PGE is a small, attractively-priced industrial area scan camera offering a blend of features, image quality, and industrial grade reliability perfect for the next generation of machine vision systems. The camera features a state-of-the-art Sony Pregius S sensor with backside illumination (BSI) technology, and a GigE Vision 2.0 interface providing 5.1-megapixel color images at up to 23 fps. Higher frame rates are possible using JAI’s “Xpress” lossless compression function.
| Model | GOX-5105M-PGE |
|---|---|
| Type | Area Scan |
| Color/Mono | Mono |
| Light Spectrum | Visible + NIR |
| Resolution | 5.1 MP |
| Resolution WxH | 2472 x 2064 px |
| Frame rate / Line rate | 23 fps |
| ROI | Yes |
| Interface | GigE Vision 1-Cable (PoE) |
| Sensors | 1XCMOS |
| Sensor Name | IMX547 |
| Optical Format | 1/1.8 inch |
| Cell Size WxH | 2.74 x 2.74 µm |
| Shutter type | Global shutter |
| Sensor Diagonal | 8.8 mm |
| Active Sensor Dimensions WxH | 6.8 x 5.7 mm |

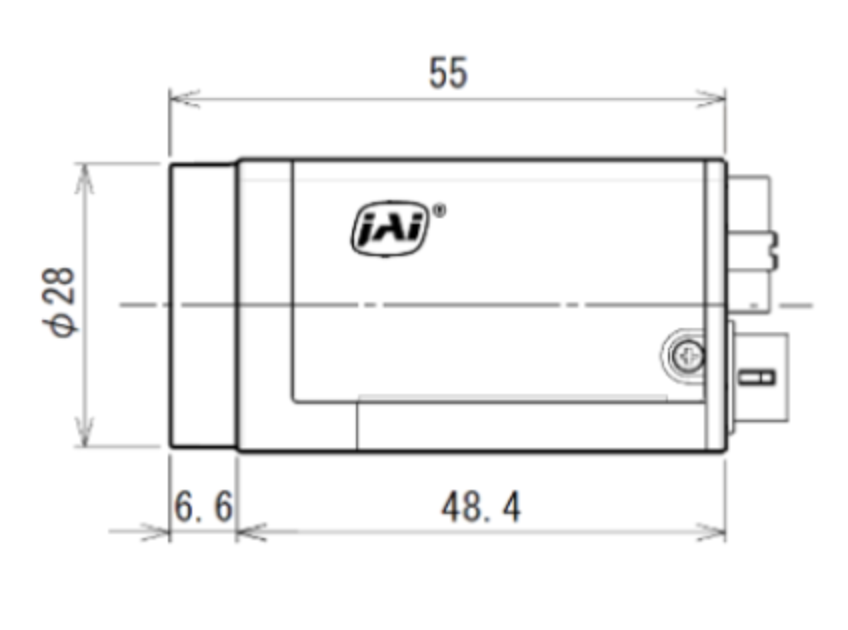

| Camera Dimensions HxWxL | 29 x 29 x 55 mm |
| Weight | 65 g |
| Video Output | 8/10/12-bit * |
| Lens Mount | C-mount |
| Power Consumption | 4.1 Watt |
| Operating Temperature (ambient) | -5°C to +45°C |
