JAI GOX-8105M-PGE
The GOX-8105M-PGE is a small, attractively-priced industrial area scan camera offering a blend of features, image quality, and industrial grade reliability perfect for the next generation of machine vision systems. The camera features a state-of-the-art Sony Pregius S sensor with backside illumination (BSI) technology, and a GigE Vision 2.0 interface providing 8.1-megapixel monochrome images at up to 14 fps. Higher frame rates are possible using JAI’s “Xpress” lossless compression function.
| Model | GOX-8105M-PGE |
|---|---|
| Type | Area Scan |
| Color/Mono | Mono |
| Light Spectrum | Visible + NIR |
| Resolution | 8.1 MP |
| Resolution WxH | 2856 x 2848 px |
| Frame rate / Line rate | 14 fps |
| ROI | Yes |
| Interface | GigE Vision 1-Cable (PoE) |
| Sensors | 1XCMOS |
| Sensor Name | IMX546 |
| Optical Format | 2/3 inch |
| Cell Size WxH | 2.74 x 2.74 µm |
| Shutter type | Global shutter |
| Sensor Diagonal | 11.1 mm |
| Active Sensor Dimensions WxH | 7.8 x 7.8 mm |

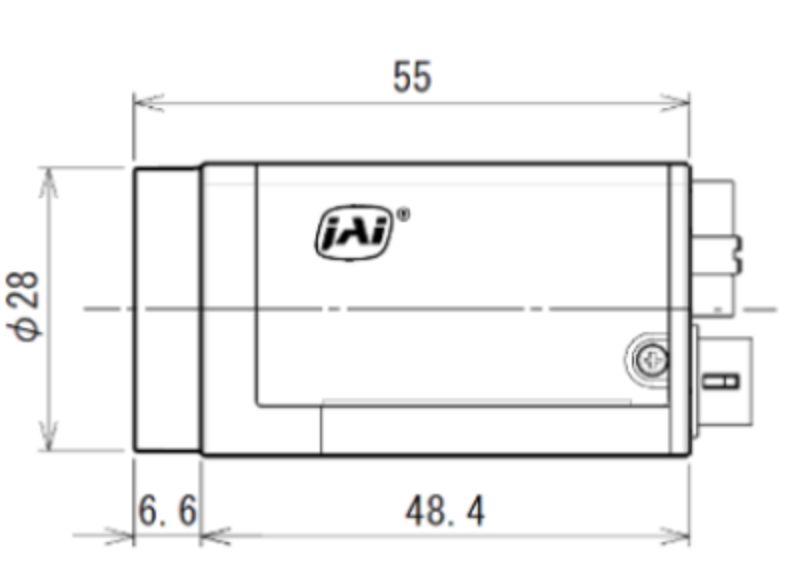

| Camera Dimensions HxWxL | 29 x 29 x 55 mm |
| Weight | 65 g |
| Video Output | 8/10/12-bit * |
| Lens Mount | C-mount |
| Power Consumption | 4.1 Watt |
| Operating Temperature (ambient) | -5°C to +45°C |
