VS-LLD10
It supports up to 4/3” and C- mount camera. Designed for Distortionless and High resolution machine vision macro lens. It has 9 product line (f# range : 10mm-50mm) covers various angles of view. The floating system improves high performance with any magnification with reduced shading.
| Model | VS-LLD10 | Field of View | Field of View | Field of View |
|---|---|---|---|---|
| Focal length (f) | 10 mm | |||
| Optical mag. range | (∞) X 0.05 ~ X 0.15 | |||
| Optical Mag. | X 0.05 | X 0.10 | X 0.15 | |
| 4/3" | 272.0 X 362.6 | 136.0 X 181.3 | 90.7 X 120.9 | |
| FOV (VxH mm) | 1" | 225.3 X 225.3 | 112.6 X 112.6 | 75.1 X 75.1 |
| 2/3" | 142.0 X 168.0 | 71.0 X 84.0 | 47.3 X 56.0 | |
| WD | 189.6 mm | 87.2 mm | 53.1 mm | |
| O/I (Object & Imager Distance) | 295.2 mm | 190.1 mm | 153.7 mm | |
| WorkingF/# *value at Iris open | 2.9 | 3.1 | 3.2 | |
| TV distortion (4/3") | -0.33 % | -0.68 % | -0.92 % | |
| Operation of Iris & Focus | Manual | |||
| Wavelength | Visible | |||
| Camera mount | C-mount | |||
| Flange Back | 17.526 mm | |||
| Filter Thread | - | |||
| Sensor size (max.) | 4/3" | |||
| Weight (approx.) | 450g | |||

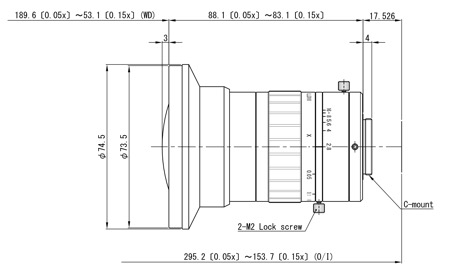

| Dimension | φ 74.5 (max.) X L= 88.1 (0.05X) ~ 83.1 (0.15X) mm |
