VS-LLD12.5
It supports up to 4/3” and C- mount camera. Designed for Distortionless and High resolution machine vision macro lens. It has 9 product line (f# range : 10mm-50mm) covers various angles of view. The floating system improves high performance with any magnification with reduced shading.
| Model | VS-LLD12.5 | |||
|---|---|---|---|---|
| Focal length (f) | 12.5 mm | |||
| Optical mag. range | (∞) X 0.05 ~ X 0.20 | |||
| Optical Mag. | X0.05 | X0.10 | X0.20 | |
| 4/3" | 272.0 X 362.6 | 136.0 X 181.3 | 68.0 X 90.7 | |
| FOV (VxH mm) | 1" | 225.3 X 225.3 | 112.6 X 112.6 | 56.3 X 56.3 |
| 2/3" | 142.0 X 168.0 | 71.0 X 84.0 | 35.5 X 42.0 | |
| WD | 232.0 mm | 104.3 mm | 40.9 mm | |
| O/I (Object & Imager Distance) | 335.6 mm | 207.2 mm | 142.7 mm | |
| WorkingF/# *value at Iris open | 2.6 | 2.7 | 3 | |
| TV distortion (4/3") | +0.33 % | +0.06 % | -0.40 % | |
| Operation of Iris & Focus | Manual | |||
| Wavelength | Visible | |||
| Camera mount | C-mount | |||
| Flange Back | 17.526 mm | |||
| Filter Thread | M 62 P= 0.75 | |||
| Sensor size (max.) | 4/3" | |||
| Weight (approx.) | 380g | |||

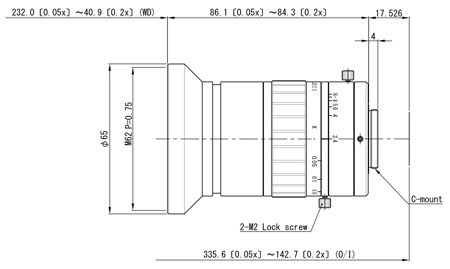

| Dimension | φ 65 (max.) x L= 86.1 (0.05X) ~ 84.3 (0.2X) mm |
