VS-MC15
Robust design for vibration resistance
For VGA ～3 Megapixel sensors
Compact & Simple for machine use
Distortionless and Reduced shading
Different F/# version available for VS-MC4～75：Open, F5.6 or F8
| Machine Vision Macro Lens | ||||
|---|---|---|---|---|
| Model | VS-MC15 | |||
| Optical mag. range | 0.03x~0.30x | |||
| Optical mag. | 0.03 X | 0.20 X | 0.30 X | |
| 2/3" | 220.0 X 293.3 | 33.0 X 44.0 | 22.0 X 29.3 | |
| FOV (VxH mm) | 1/2" | 160.0 X 213.3 | 24.0 X 32.0 | 16.0 X 21.3 |
| 1/3" | 120.0 X 160.0 | 18.0 X 24.0 | 12.0 X 16.0 | |
| WD | 492.2 mm | 67.3 mm | 42.3 mm | |
| O/I (Object & Imager distance) | 535.1 mm | 112.8 mm | 89.3 mm | |
| FNo. | 2/5.6/8 | 2/5.6/8 | 2/5.6/8 | |
| Working F/# | 2.06/5.77/8.24 | 2.40/6.72/9.60 | 2.60/7.28/10.40 | |
| DOF at PCoC φ0.04mm | 183.1/512.7/732.4 | 4.8/13.4/19.2 | 2.3/6.5/9.2 | |
| TV distortion (max.) | 0.0011 | -0.0005 | -0.0014 | |
| Wavelength | Visible (400nm - 700nm) | |||
| Camera mount | C-mount | |||
| Flange Back | 17.526 mm | |||
| Sensor size (max.) | 2/3" | |||
| Weight (approx.) | 42.0 g | |||

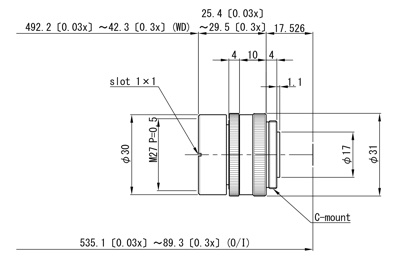

| Dimension | Φ 31 (MAX) × L= 25.4 (0.03x) ~ 29.5 (0.3x) mm |
