VS-MC20
Robust design for vibration resistance
For VGA ～3 Megapixel sensors
Compact & Simple for machine use
Distortionless and Reduced shading
Different F/# version available for VS-MC4～75：Open, F5.6 or F8
| Machine Vision Macro Lens | ||||
|---|---|---|---|---|
| Model | VS-MC20 | |||
| Optical mag. range | 0.04x~0.40x | |||
| Optical mag. | 0.04 X | 0.25 X | 0.40 X | |
| 2/3" | 165.0 X 220.0 | 26.4 X 35.2 | 16.5 X 22.0 | |
| FOV (VxH mm) | 1/2" | 120.0 X 160.0 | 19.2 X 25.6 | 12.0 X 16.0 |
| 1/3" | 90.0 X 120.0 | 14.4 X 19.2 | 9.0 X 12.0 | |
| WD | 516.5 mm | 81.0 mm | 49.8 mm | |
| O/I (Object & Imager distance) | 557.0 mm | 125.9 mm | 97.8 mm | |
| FNo. | 2/5.6/8 | 2/5.6/8 | 2/5.6/8 | |
| Working F/# | 2.22/5.82/8.32 | 2.66/7.00/10.00 | 2.98/7.84/11.20 | |
| DOF at PCoC φ0.04mm | 110.8/291.2/416.0 | 3.4/9.0/12.8 | 1.5/3.9/5.6 | |
| TV distortion (max.) | 0.0006 | -0.0019 | -0.0034 | |
| Wavelength | Visible (400nm - 700nm) | |||
| Camera mount | C-mount | |||
| Flange Back | 17.526 mm | |||
| Sensor size (max.) | 2/3" | |||

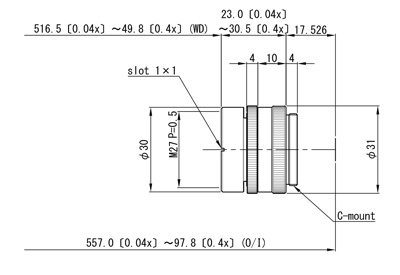

| Dimension | Φ 31 (MAX) × L= | 23.0 (0.04x) ~ | 30.5 (0.4x) mm |
