VS-MC25N
Robust design for vibration resistance
For VGA ～3 Megapixel sensors
Compact & Simple for machine use
Distortionless and Reduced shading
Different F/# version available for VS-MC4～75：Open, F5.6 or F8
| Machine Vision | Macro Lens | |||
|---|---|---|---|---|
| Model | VS-MC25N | |||
| Optical mag. range | 0.05x~0.50x | |||
| Optical mag. | 0.05 X | 0.25 X | 0.50 X | |
| 2/3" | 132.0 X 176.0 | 26.4 X 35.2 | 13.2 X 17.6 | |
| FOV (VxH mm) | 1/2" | 96.0 X 128.0 | 19.2 X 25.6 | 9.6 X 12.8 |
| 1/3" | 72.0 X 96.0 | 14.4 X 19.2 | 7.2 X 9.6 | |
| WD | 513.9 mm | 106.0 mm | 54.9 mm | |
| O/I (Object & Imager distance) | 557.9 mm | 155.1 mm | 110.4 mm | |
| FNo. | 2/5.6/8 | 2/5.6/8 | 2/5.6/8 | |
| Working F/# | 2.10/5.88/8.40 | 2.50/7.00/10.00 | 3.00/8.40/12.00 | |
| DOF at PCoC φ0.04mm | 67.2/188.2/268.8 | 3.2/9.0/12.8 | 1.0/2.7/3.8 | |
| TV distortion (max.) | 0.0005 | -0.0009 | -0.0018 | |
| Wavelength | Visible (400nm - 700nm) | |||
| Camera mount | C-mount | |||
| Flange Back | 17.526 mm | |||
| Sensor size (max.) | 2/3" | |||
| Weight (approx.) | 50.0 g | |||

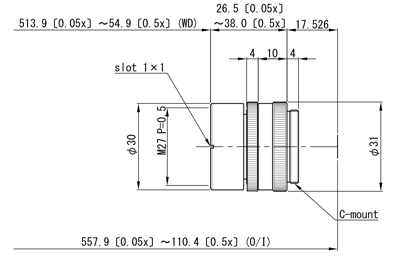

| Dimension | Φ 31 (MAX) × | L= 26.5 (0.05x) ~ | 38.0 (0.5x) mm |
