VS-MC4
Robust design for vibration resistance
For VGA ～3 Megapixel sensors
Compact & Simple for machine use
Distortionless and Reduced shading
Different F/# version available for VS-MC4～75：Open, F5.6 or F8
| Model | VS-MC4 | |||
|---|---|---|---|---|
| Optical mag. range | 0.01x~0.04x | |||
| Optical mag. | 0.01 X | 0.02 X | 0.04 X | |
| 2/3" | - | - | - | |
| FOV (VxH mm) | 1/2" | 480.0 X 640.0 | 240.0 X 320.0 | 120.0 X 160.0 |
| 1/3" | 360.0 X 480.0 | 180.0 X 240.0 | 90.0 X 120.0 | |
| WD | 404.1 mm | 196.1 mm | 92.1 mm | |
| O/I (Object & Imager distance) | 449.1 mm | 241.2 mm | 137.3 mm | |
| FNo. | 2/5.6/8 | 2/5.6/8 | 2/5.6/8 | |
| Working F/# | 2.10/5.66/8.08 | 2.12/5.71/8.16 | 2.16/5.82/8.32 | |
| TV distortion (1/2") | 0.0095 | 0.0094 | 0.0092 | |
| Wavelength | Visible (400nm - 700nm) | |||
| Camera mount | C-mount | |||
| Flange Back | 17.526 mm | |||
| Sensor size (max.) | 1/2" | |||
| Weight (approx.) | 60 g | |||

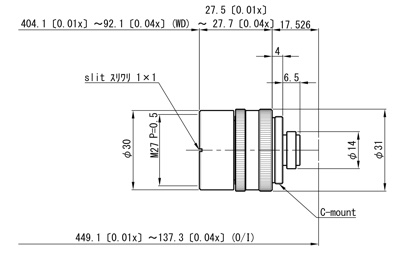

| Dimension | Φ 31 (MAX) × L= 27.5 (0.01x) ~ 27.7 (0.04x) mm |
