VS-MC6.5
Robust design for vibration resistance
For VGA ～3 Megapixel sensors
Compact & Simple for machine use
Distortionless and Reduced shading
Different F/# version available for VS-MC4～75：Open, F5.6 or F8
| Machine Vision Macro Lens | ||||
|---|---|---|---|---|
| Model | VS-MC6.5 | |||
| Optical mag. range | 0.01x~0.06x | |||
| Optical mag. | 0.01 X | 0.03X | 0.06 X | |
| 2/3" | - | - | - | |
| FOV (VxH mm) | 1/2" | 480.0 X 640.0 | 160.0 X 213.3 | 80.0 X 106.7 |
| 1/3" | 360.0 X 480.0 | 120.0 X 160.0 | 60.0 X 80.0 | |
| WD | 631.5 mm | 197.5 mm | 89.0 mm | |
| O/I (Object & Imager distance) | 674.1 mm | 240.2 mm | 131.9 mm | |
| FNo. | 2.2/5.6/8 | 2.2/5.6/8 | 2.2/5.6/8 | |
| Working F/# | 2.28/5.66/8.08 | 2.33/5.77/8.24 | 2.39/5.94/8.48 | |
| TV distortion 1/2") | 0.0011 | 0.0006 | -0.0001 | |
| Wavelength | Visible (400nm - 700nm) | |||
| Camera mount | C-mount | |||
| Flange Back | 17.526 mm | |||
| Sensor size (max.) | 1/2" | |||
| Weight (approx.) | 60.0 g | |||

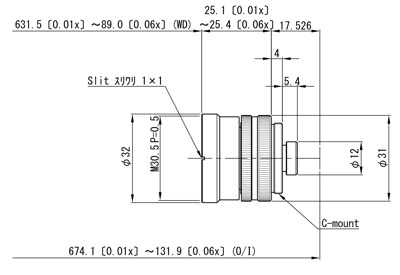

| Dimension | Φ 32 (MAX) × | L= 25.1 (0.01x) ~ | 25.4 (0.06x) mm |
